Baumer UNCK 09G8914/KS35A 11011509
Baumer

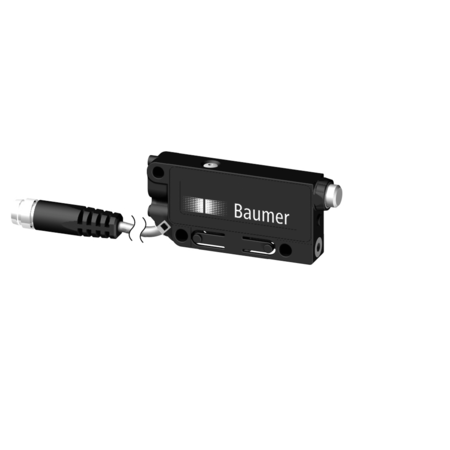

The Baumer UNCK 09G8914/KS35A 11011509 is a high-performance ultrasonic sensor designed for precise distance measurement within a range of 30 to 200 mm. It features a repeat accuracy of 0.5 mm and a response time of less than 7 ms, ensuring quick and reliable readings. The sensor operates at a sonic frequency of 380 kHz and includes a teach-in adjustment for easy setup. It is equipped with both green and red LEDs for output indication and target alignment aid. The sensor supports a voltage supply range of 12 to 30 VDC and has a maximum current consumption of 35 mA. It offers robust protection features including short circuit and reverse polarity protection. The rectangular housing is made from durable PA 12 material, measuring 8.6 mm in width, 55 mm in length, and 24.5 mm in depth, and it is connected via a flylead connector M8. Suitable for operating temperatures from 0 to +60 °C, the sensor is IP 67 certified, making it ideal for challenging environmental conditions.
- Scanning range Sd:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
