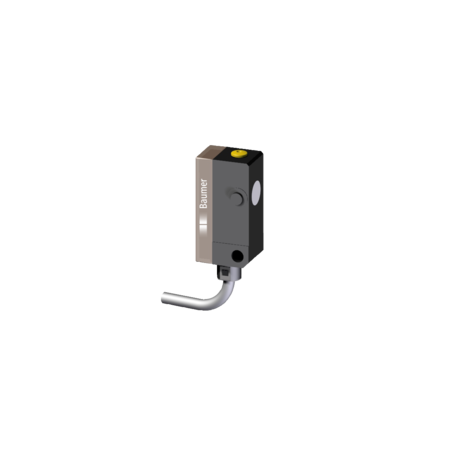

Baumer UNDK 10U6914 10161449

Baumer UNDK 10U6914 10161449

Baumer
SKU:
10161449
Availability:
Contact us to confirm availability and lead times.
$904.00
Condition:
New
Current Stock:
Description
The Baumer UNDK 10U6914 10161449 is a high-precision ultrasonic sensor designed for distance measurement within a range of 20 to 200 mm. It features repeat accuracy of 0.5 mm and resolution under 0.3 mm, ensuring precise readings. The sensor operates with a response and release time of less than 60 ms and has a sonic frequency of 380 kHz. It includes a Teach-in adjustment for easy setup and target indication flashing for better alignment, along with dual-color LED indicators for operational status. The sensor is powered by a 15 to 30 VDC supply and consumes a maximum of 35 mA with no load. It offers a voltage output signal of 0 to 10 V or 10 to 0 V and supports an output current of 20 mA. Enhanced with short circuit and reverse polarity protection, the sensor is housed in a durable plastic (ASA) rectangular body measuring 10.4 mm in width, 27 mm in height, and 14 mm in depth. It connects via a 2-meter PUR cable and operates effectively in temperatures ranging from -10 to +60 °C. The Baumer UNDK 10U6914 10161449 is IP 67 rated, indicating robust protection against dust and water ingress, making it suitable for a variety of industrial applications.
Additional Information
Scanning range Sd:
20 … 200 mm
Scanning range close limit Sdc:
20 … 200 mm
Scanning range far limit Sde:
20 … 200 mm
Repeat accuracy:
0.5 mm
Resolution:
< 0.3 mm
Response time ton:
< 60 ms
Release time toff:
< 60 ms
Temperature drift:
> 50 mm < 2 % of distance to target Sde
Sonic frequency:
380 kHz
Adjustment:
Teach-in
Alignment aid:
Target indication flashing
Light indicator:
Yellow LED / red LED
Voltage supply range +Vs:
15 … 30 VDC
Current consumption max. (no load):
35 mA
Output circuit:
Voltage output
Output signal:
0 ... 10 V / 10 ... 0 V
Output current:
20 mA
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
Plastic (ASA)
Width / diameter:
10.4 mm
Height / length:
27 mm
Depth:
14 mm
Connection types:
Cable PUR 4 x 0,08, 2 m
Operating temperature:
-10 … +60 °C
Protection class:
IP 67
Datasheet:
View
