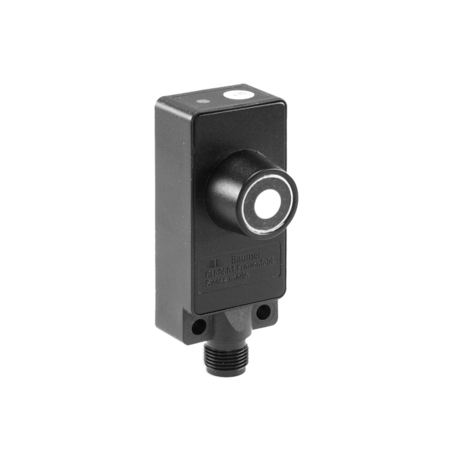

Baumer UNDK 30I6113/S14 10128238

Baumer UNDK 30I6113/S14 10128238

Baumer
SKU:
10128238
Availability:
Contact us to confirm availability and lead times.
$1,032.00
Condition:
New
Current Stock:
Description
The Baumer UNDK 30I6113/S14 is an ultrasonic sensor with a scanning range of 30 to 250 mm, featuring high repeat accuracy of 0.5 mm and resolution under 0.3 mm. It has a quick response and release time of less than 50 ms, and operates at a sonic frequency of 300 kHz. The sensor includes a teach-in adjustment, target indication flashing for alignment aid, and dual-color LED status indicators. It supports a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 55 mA. The output signal is configurable from 4 to 20 mA or 20 to 4 mA, suitable for various industrial applications. The sensor is designed with a robust polyester and die-cast zinc housing, measuring 30 mm in width, 65 mm in length, and 31 mm in depth. It features an M12 connector type, operates within a temperature range of -10 to +60 °C, and is rated IP 67 for protection against dust and water ingress. Additional safety features include short circuit and reverse polarity protection.
Additional Information
Scanning range Sd:
30 … 250 mm
Scanning range close limit Sdc:
30 … 250 mm
Scanning range far limit Sde:
30 … 250 mm
Repeat accuracy:
0.5 mm
Resolution:
< 0.3 mm
Response time ton:
< 50 ms
Release time toff:
< 50 ms
Temperature drift:
> 50 mm < 2 % of distance to target Sde
Sonic frequency:
300 kHz
Adjustment:
Teach-in
Alignment aid:
Target indication flashing
Light indicator:
Yellow LED / red LED
Voltage supply range +Vs:
15 … 30 VDC
Current consumption max. (no load):
55 mA
Output circuit:
Current output
Output signal:
4 ... 20 mA / 20 ... 4 mA
Output current:
20 mA
Load resistance +Vs max.:
< 1100 Ohm
Load resistance +Vs min.:
< 400 Ohm
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
Polyester / die-cast zinc
Width / diameter:
30 mm
Height / length:
65 mm
Depth:
31 mm
Connection types:
Connector M12
Operating temperature:
-10 … +60 °C
Protection class:
IP 67
Datasheet:
View
