Baumer UNDK 30U9113 10125254
Baumer

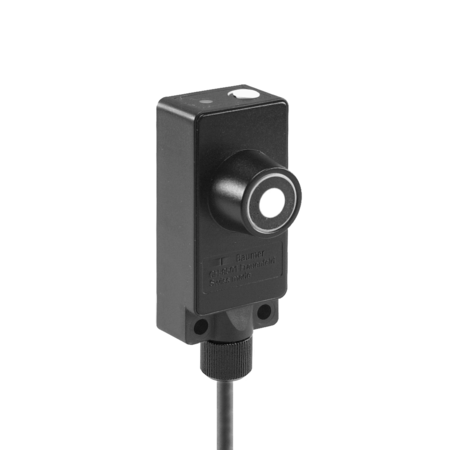

The Baumer UNDK 30U9113 10125254 is an ultrasonic sensor designed for precise distance measurement within a range of 30 to 250 mm. It features high repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm, ensuring detailed and reliable readings. The sensor responds quickly with a response and release time of less than 50 ms and is equipped with a potentiometer for easy adjustment. It includes a target indication flashing for better alignment and a green LED light indicator for operational status. The sensor operates on a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 35 mA. It offers a voltage output signal from 0 to 10 VDC and supports an output current of 20 mA. Enhanced with short circuit and reverse polarity protection, it is built in a rectangular housing made of polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 31 mm in depth. The sensor is connected via a 2-meter cable and operates effectively in temperatures ranging from -10 to +60 °C. It is highly durable with an IP 67 protection class, making it suitable for challenging environments.
- Scanning range Sd:
- 30 250 mm
- Scanning range far limit Sde:
- 30 250 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 50 ms
- Release time toff:
- < 50 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 300 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Light indicator:
- LED green
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 VDC
- Output current:
- 20 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
