Baumer URDK 10P8914/S35A 10161445
Baumer

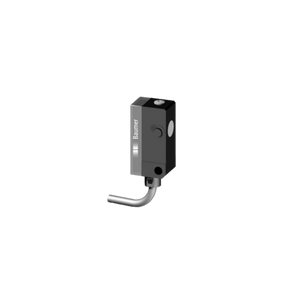

The Baumer URDK 10P8914/S35A 10161445 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 0 to 200 mm. It features a reflector position range of 40 to 200 mm with an adjustable operating range of ±2.5% and a limit range of ±5% of the reflector position. This sensor offers a repeat accuracy of 1.5 mm and is highly resistant to temperature fluctuations, with a drift of less than 2%. It has a quick response and release time of less than 15 ms, operates at a sonic frequency of 380 kHz, and includes a teach-in adjustment for easy setup. The sensor is equipped with a target indication flashing for alignment aid, a green LED output indicator, and operates on a voltage supply range of 12 to 30 VDC. It supports a maximum output current of 200 mA with a voltage drop of less than 2 VDC and includes safety features such as short circuit and reverse polarity protection. The sensor's durable plastic housing (ASA) measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, and it connects via an M8 connector. Suitable for operating temperatures ranging from -10 to +60 °C, it is IP 67 rated for protection against dust and water ingress.
- Scanning range Sd:
- 0 200 mm
- Reflector position Sde:
- 40 200 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 15 ms
- Release time toff:
- < 15 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- PNP make function (NO) / break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
