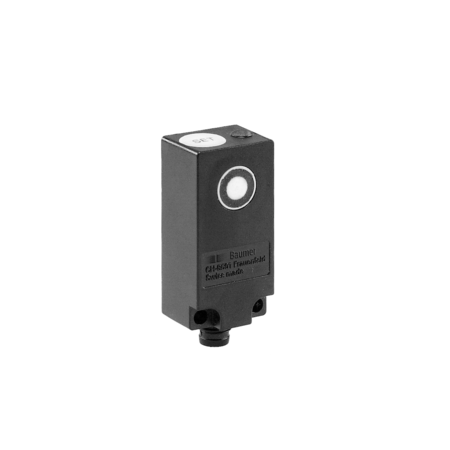

The Baumer URDK 20N6914/S35A 10160230 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 0 to 200 mm. It features a reflector position range of 40 to 200 mm with an adjustable operating range of ±2.5% and a limit range of ±5% of the reflector position. The sensor offers a repeat accuracy of 1.5 mm and is highly stable with a temperature drift of less than 2%. It responds quickly with a response time of less than 10 ms and a release time of less than 10 ms. Operating at a sonic frequency of 380 kHz, it includes a teach-in adjustment and a target indication flashing for easier alignment. The output is indicated by a green LED, and the sensor operates on a voltage supply range of 12 to 30 VDC, consuming a maximum of 35 mA with no load. It supports an NPN make function (NO) output circuit with an output current of 200 mA and a voltage drop of less than 2 VDC. The sensor is equipped with short circuit and reverse polarity protection, ensuring reliable operation. Housed in a rectangular polyester body measuring 20 mm in width, 42 mm in height, and 15 mm in depth, it connects via an M8 connector. Suitable for operating temperatures ranging from -10 to +60 °C, it is protected against harsh environments with an IP 67 rating.
- Scanning range Sd:
- 0 200 mm
- Reflector position Sde:
- 40 200 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 10 ms
- Release time toff:
- < 10 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
