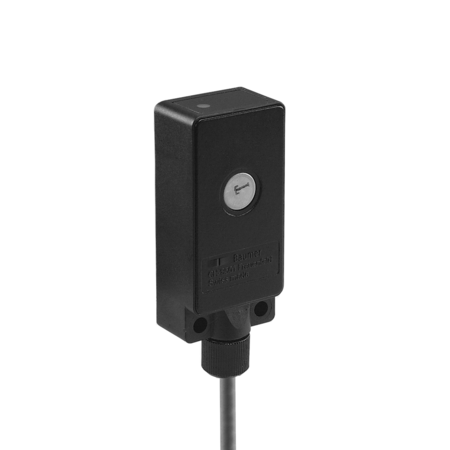

Baumer USDK 30D9003 10243462 is an ultrasonic sensor designed as an emitter with a scanning range of 0 to 700 mm and operates at a sonic frequency of 220 kHz. It features a target indication flashing for alignment aid and a yellow LED for power indication. The sensor is powered by a 12 to 30 VDC supply, consumes a maximum of 22 mA with no load, and includes reverse polarity protection. It has a rectangular design with a housing made of polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 18.5 mm in depth. The sensor is connected via a 2-meter cable and operates within a temperature range of 0 to +60 °C. It is protected against the ingress of dust and water with an IP 67 rating. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/USDK_30D9003_web_EN.pdf?mediaPK=8801238253598).
- Emitter / receiver:
- Emitter
- Scanning range Sd:
- 0 700 mm
- Scanning range far limit Sde:
- 0 700 mm
- Sonic frequency:
- 220 kHz
- Alignment aid:
- Target indication flashing
- Power on indication:
- LED yellow
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 22 mA
- Residual ripple:
- < 10 % Vs
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 18.5 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
