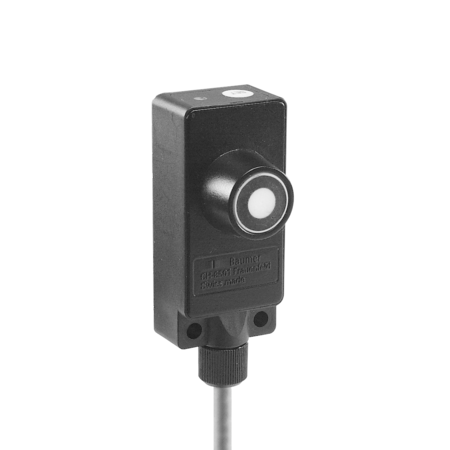

Baumer UZDK 30P6113 10160354

Baumer UZDK 30P6113 10160354

Baumer
SKU:
10160354
Availability:
Contact us to confirm availability and lead times.
$1,114.00
Condition:
New
Current Stock:
Description
The Baumer UZDK 30P6113 10160354 is a 2-point proximity switch with a scanning range of 30 to 250 mm and a typical hysteresis of 5%. It features a repeat accuracy of 0.5 mm and a temperature drift of less than 2%. The device operates with a response and release time of less than 20 ms and a sonic frequency of 300 kHz. It includes a Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. The switch supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and has a PNP make function output circuit with a maximum output current of 200 mA. The voltage drop is less than 2 VDC, and it has less than 10% residual ripple. It includes short circuit and reverse polarity protection. The rectangular housing is made of polyester and die-cast zinc, measuring 30 mm in width, 65 mm in length, and 31 mm in depth, with a 2-meter cable connection. It operates within a temperature range of -10 to +60 °C and is rated IP 67 for protection against dust and water ingress.
Additional Information
Special type:
2 point proximity switch
Scanning range Sd:
30 … 250 mm
Scanning range far limit Sde:
30 … 250 mm
Hysteresis typ.:
5 % Sde
Repeat accuracy:
0.5 mm
Temperature drift:
< 2 % Sde
Response time ton:
< 20 ms
Release time toff:
< 20 ms
Sonic frequency:
300 kHz
Adjustment:
Teach-in
Alignment aid:
Target indication flashing
Output indicator:
Green / yellow LED
Voltage supply range +Vs:
12 … 30 VDC
Current consumption max. (no load):
40 mA
Output circuit:
PNP make function (NO)
Output current:
200 mA
Voltage drop Vd:
<2 VDC
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
Polyester / die-cast zinc
Width / diameter:
30 mm
Height / length:
65 mm
Depth:
31 mm
Connection types:
Cable, L=2 m
Operating temperature:
-10 … +60 °C
Protection class:
IP 67
Datasheet:
View
