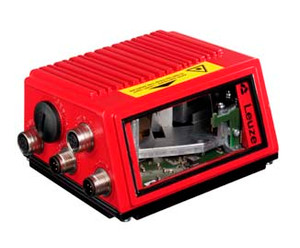

Leuze BCL 558i SL 102 Industrial Sensor System
Leuze
$8,894.00
The BCL 558i SL 102 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LASER, red emission
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: 0...40 °C
Typical Applications:
Optimized for high-speed sortation systems, distribution center package tracking, production line part identification, and quality control applications. The compact scanner integrates easily into conveyor systems and automated material handling equipment for real-time data capture.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model BCL 558i SL 102). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- BCL 500i
- Functions:
- Alignment mode,AutoConfig,AutoControl,AutoReflAct,Code fragment technology,LED indicator,Reference code comparison
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,EAN 128,EAN Addendum,GS1 Databar Expanded,GS1 Databar Limited,GS1 Databar Omnidirectional,UPC
- Scanning rate, typical:
- 1,000 scans/s
- Bar codes per reading gate, max. number:
- 64 Piece(s)
- Reading distance:
- 1,000 ... 2,400 mm
- Light source:
- Laser, Red
- Wavelength:
- 650 nm
- Laser class:
- 1, IEC/EN 60825-1:2014
- Modulus size:
- 0.7 ... 1 mm
- Reading method:
- Line scanner
- Scanning rate:
- 800 ... 1,200 scans/s
- Beam deflection:
- Via rotating polygon wheel
- Light beam exit:
- Front
- Supply voltage UB:
- 10 ... 30 V, DC
- Power consumption, max.:
- 11 W
- Number of inputs/outputs selectable:
- 4 Piece(s)
- Type:
- EtherNet IP
- Function:
- Process
- Switch functionality:
- Integrated
- Type:
- USB
- Function:
- Configuration via software,Service
- Number of connections:
- 5 Piece(s)
- Function:
- Service interface
- Type of connection:
- USB
- Designation on device:
- SERVICE
- Connector type:
- USB 2.0 Standard-A
- Function:
- Signal OUT
- Designation on device:
- SW IN/OUT
- Function:
- Signal IN,Signal OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- BUS IN
- Designation on device:
- HOST / BUS IN
- Encoding:
- D-coded
- Function:
- BUS OUT
- Designation on device:
- BUS OUT
- Design:
- Cubic
- Dimension (W x H x L):
- 123.5 mm x 63 mm x 106.5 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Lens cover material:
- Glass
- Net weight:
- 1,100 g
- Housing color:
- Red,Silver
- Type of fastening:
- Dovetail grooves,Mounting thread,Via optional mounting device
- Type of display:
- LED,Monochromatic graphical display, 128x64 pixel, with background lighting
- Number of LEDs:
- 2 Piece(s)
- Type of configuration:
- Via web browser
- Operational controls:
- Button(s)
- Ambient temperature, operation:
- 0 ... 40 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 55022,EN 61000-4-2, -3, -4, -6
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
