BK7 KB-092-5000-4 Ex Connection cable

Leuze BK7 KB-092-5000-4 Ex Connection cable

Leuze
SKU:
BK7 KB-092-5000-4 Ex
Availability:
Factory stock
$159.00
Condition:
New
Current Stock:
Description

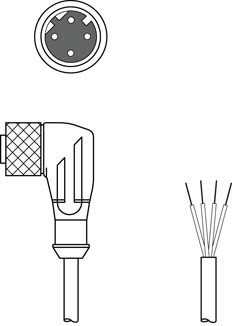

The Leuze BK7 KB-092-5000-4 Ex is a connection cable designed for chemical-resistant applications, featuring an angled M12 female A-coded 4-pin connector on one end and an open cable end on the other. It has a 5 m length with PUR sheathing (blue), PVC wire insulation, 4 conductors, and is unshielded, suitable for standard industrial sensor and actuator connections but not drag chains. The "Ex" designation indicates suitability for intrinsically safe circuits, with a net weight of 149 g. Documentation - Technical Datasheet: https://www.leuze.com/en-int/bk7-kb-092-5000-4-ex/50037784 - Product Data Sheet (PDF): https://www.leuze.com/download/ds_bk7-kb-092-5000-4-ex_eng_50037784.pdf - Connection Technology Catalog: https://www.leuze.com/en-int/products/connection-technology - Approvals and Certifications: https://www.leuze.com/en-int/bk7-kb-092-5000-4-ex/50037784approvals
Additional Information
Application:
Chemical resistant
Type of connection:
Connector
Thread size:
M12
Type:
Female
No. of pins:
4 -pin
Encoding:
A-coded
Version:
Angled
Connector, LED:
No
Type of connection:
Open end
Number of conductors:
4 Piece(s)
Sheathing color:
Blue
Shielded:
No
Cable length:
5,000 mm
Sheathing material:
PUR
Wire insulation:
PVC
Suitability for drag chains:
No
Customs tariff number:
85444290
ECLASS 5.1.4:
27279201
ECLASS 8.0:
27279218
ECLASS 9.0:
27060311
ECLASS 10.0:
27060311
ECLASS 11.0:
27060311
ECLASS 12.0:
27060311
ECLASS 13.0:
27060311
ECLASS 14.0:
27060311
ECLASS 15.0:
27060311
ETIM 5.0:
EC001855
ETIM 6.0:
EC001855
ETIM 7.0:
EC001855
ETIM 8.0:
EC001855
ETIM 9.0:
EC001855
ETIM 10.0:
EC001855
Datasheet:
View
