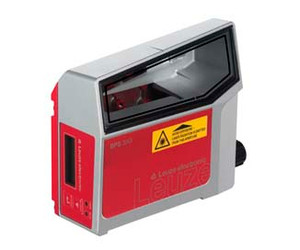

Leuze BPS 301i SM 100 D Industrial Sensor System
Leuze
$2,284.00
The BPS 301i SM 100 D is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LASER, red emission
Communication interface: RS 485 for direct PLC integration
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 18...30 V DC with reverse polarity protection
Operating temperature: -5...50 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model BPS 301i SM 100 D). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- BPS 300i
- MTTF:
- 83 years
- Depth of field:
- 50 ... 170 mm
- Light source:
- Laser, Red
- Laser class:
- 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
- Transmitted-signal shape:
- Continuous
- Light beam exit:
- Lateral
- Measurement range:
- 0 ... 10,000,000 mm
- Reproducibility (1 sigma):
- 0.05 mm
- Measurement value output:
- 1 ... 30 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Power consumption, max.:
- 3.7 W
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Switching element:
- Transistor, PNP
- Type:
- RS 485
- Type:
- USB
- Function:
- Configuration/parameterization via integrated web server,Service
- Design:
- Cubic
- Dimension (W x H x L):
- 100 mm x 108.7 mm x 48.3 mm
- Housing material:
- Metal
- Lens cover material:
- Glass
- Net weight:
- 580 g
- Type of fastening:
- Dovetail grooves,Fastening on back,Via optional mounting device
- Type of display:
- LED,Monochromatic graphic display, 128 x 32 pixels
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -35 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65, EN 60529 with various connectors or screwed-on caps
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-3
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280190
- ECLASS 10.0:
- 27280190
- ECLASS 11.0:
- 27280190
- ECLASS 12.0:
- 27280106
- ECLASS 13.0:
- 27280106
- ECLASS 14.0:
- 27280106
- ECLASS 15.0:
- 27280106
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
