Leuze CB-M12-1500X-3WF/WM M12 3-Pin Male to Female Double-Ended Cordset, 1.5 m, PUR
Leuze
$31.00

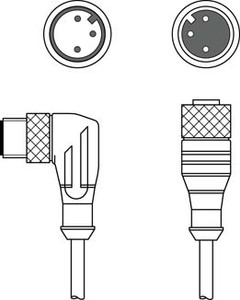

Leuze CB-M12-1500X-3WF/WM M12 3-Pin Double-Ended Cordset
The Leuze CB-M12-1500X-3WF/WM is a molded M12 cordset with a 3-pin connection, right-angle orientation, 1.5 m cable and PUR jacket. Molded cordsets are factory-terminated and sealed, so they install quickly and hold their rating in washdown, oil, and vibration where hand-wired terminations tend to fail.
Specifications
| Brand | Leuze |
| Part Number | CB-M12-1500X-3WF/WM |
| Manufacturer ID | 548052 |
| Product Type | Double-ended cordset |
| Connector | M12 |
| Number of Pins | 3 |
| Gender | Male / Female |
| Orientation | Right-Angle |
| Cable Length | 1.5 m |
| Jacket Material | PUR |
Refer to the manufacturer datasheet for the complete pinout, wiring diagram, and ratings before installation.
Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
- Application:
- Oil and lubricant resistant
- Type:
- Female
- Connector, LED:
- No
- Type:
- Male
- Sheathing color:
- Black
- Shielded:
- No
- Cable design:
- Interconnection cable
- Cable length:
- 1,500 mm
- Sheathing material:
- PUR
- Suitability for drag chains:
- Yes
- Traverse rate:
- Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s²
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Pins:
- 3
- Cordset Design:
- Double-Ended
