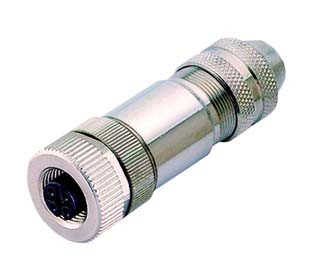

Leuze CB-M12-8GF Connector

Leuze CB-M12-8GF M12 A-Coded 8-Pin Field Wireable Connector

The Leuze CB-M12-8GF is a field wireable M12 connector with an A-coded 8-pin connection, female connector and straight orientation. Field wireable connectors let you terminate your own cable to the exact length needed, which is useful for repairs, retrofits, and custom cable runs.

A-coded M12 is the standard interface for sensors, actuators, valves, and I/O modules, and is also used for DeviceNet, CANopen, and IO-Link connections.

Specifications

Manufacturer Details

The Leuze CB-M12-8GF is an 8-pin female M12 connector with A-coding and axial design, featuring a metal housing and handle body for robust industrial applications. It uses screw terminal connections suitable for professional field wiring, supporting conductor sizes compatible with typical sensor and automation systems. With a net weight of 43 g and compliance to standards including ECLASS 27440116 and ETIM EC002635, it is ideal for integrating optical sensors, distance measurement devices, and network connection technology in manufacturing environments. Documentation - Technical Datasheet: https://www.leuze.com/en-us/cb-m12-8gf/429178 - Product Data Sheet (PDF): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DSCBM128GFeng429178.pdf - Product Family Catalog: https://www.leuze.com/en-int/products/network-and-connection-technology/connectors - CAD Data: https://www.leuze.com/en-us/cb-m12-8gf/429178cad

Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
