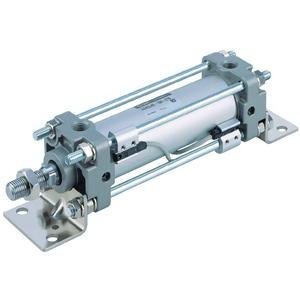

SMC CDBA2F63-200-HN-Y7BWL CBA2 Series Air Cylinder
SMC
$347.60
The SMC CDBA2F63-200-HN-Y7BWL CBA2 Series Air Cylinder is a cutting-edge pneumatic solution designed to enhance efficiency and performance in industrial applications. This air cylinder is part of the CBA2 Series, known for its lightweight design, reducing weight by 15% compared to the previous CA1 series. It features a square cover and a standard tie-rod type, ensuring robust and reliable operation.
Equipped with an auto switch, this air cylinder is compatible with various models within the series, including CDA2, CDA2W, CDA2K, CDA2KW, CDA2 Q, CDBA2, CDA2 H, and CDA2W H. Please note that the production of the CA2 series was discontinued in October 2013, except for specific models like the non-rotating rod (CA2K/CA2KW) and those with an end lock (CBA2) or air-hydro capabilities (CA2 H/CA2W H). For new applications, consider selecting the CA2-Z series for continued support and innovation.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Tube Material:
- Aluminum tube
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc
- Water Resistant Cylinders:
- Standard
- Cylinder Stroke:
- Standard Stroke 200 mm
- Suffix For Cylinder:
- Without Rod Boot,With Cushion On Both Sides
- Stroke Adjustment Symbol:
- None
- Lock Position:
- Head End Lock
- Manual Release Type:
- Non-locking Type
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,With Cushion On Both Sides
- Lock Position2:
- None
- Manual Release Type2:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
