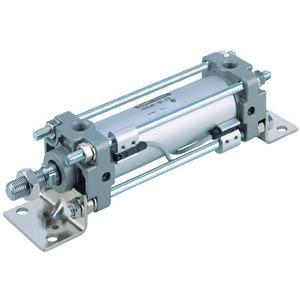

SMC CDBA2G50-300-RL-Y59BL CBA2 Series Air Cylinder
SMC
$313.90
The SMC CDBA2G50-300-RL-Y59BL CBA2 Series Air Cylinder is designed to enhance efficiency and performance in pneumatic applications. This advanced air cylinder reduces weight by 15% compared to the previous CA1 series, thanks to its innovative square cover and standard tie-rod type design. It comes equipped with an auto switch, compatible with various models including CDA2, CDA2W, CDA2K, CDA2KW, CDA2 Q, CDBA2, CDA2 H, and CDA2W H. Please note that the production of the CA2 series was discontinued in October 2013, except for specific models such as the non-rotating rod (CA2K/CA2KW) and those with an end lock (CBA2) or air-hydro features (CA2 H/CA2W H). For new applications, consider selecting the CA2-Z series for continued support and availability.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Head Flange Style
- Tube Material:
- Aluminum tube
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc
- Water Resistant Cylinders:
- Standard
- Cylinder Stroke:
- Standard Stroke 300 mm
- Suffix For Cylinder:
- Without Rod Boot,With Cushion On Both Sides
- Stroke Adjustment Symbol:
- None
- Lock Position:
- Rod End Lock
- Manual Release Type:
- Locking Type
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,With Cushion On Both Sides
- Lock Position2:
- None
- Manual Release Type2:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
