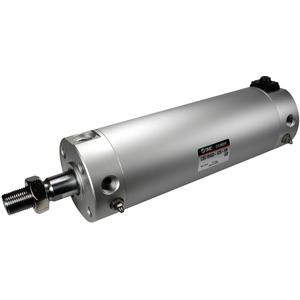

SMC CDBG1BN80-200-HL CBG1 Series End Lock Cylinder
SMC
$220.75
The SMC CDBG1BN80-200-HL CBG1 Series End Lock Cylinder is a versatile and efficient component designed for precision and ease of use. This cylinder features a female rod end as standard, allowing for seamless integration into your systems. It offers easy fine adjustment of the auto switch position, ensuring optimal performance and adaptability. Unlike other models, this cylinder does not include a trunnion mounting female thread, simplifying its design and installation. Additionally, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need to order these components separately. The cylinder is equipped with an auto switch, compatible with the CDG1-Z series, including models CDG1, CDG1W, CDG1K, CDG1KW, and CDG1R, providing enhanced functionality and control.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Type:
- Rubber Bumper
- Bore Size:
- Bore Size 80 mm
- Cylinder Stroke:
- Standard Stroke 200 mm
- Suffix For Cylinder:
- Without Rod Boot
- Lock Position:
- Head End Lock
- Manual Release Type:
- Locking Type
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
