SMC

SMC CDBQ2A80-100DCM-HL-M9PWVSAPC CBQ2 Series Compact Cylinder

(No reviews yet) Write a Review
SKU:
CDBQ2A80-100DCM-HL-M9PWVSAPC
MPN:
CDBQ2A80-100DCM-HL-M9PWVSAPC
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Both Ends Tapped Style
Bore Size:
Bore Size 80 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 100 mm
Body Option:
With Rubber Bumper And Rod End Male Thread
Lock Position:
Head End Lock
Manual Release Type:
Lock Type
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard

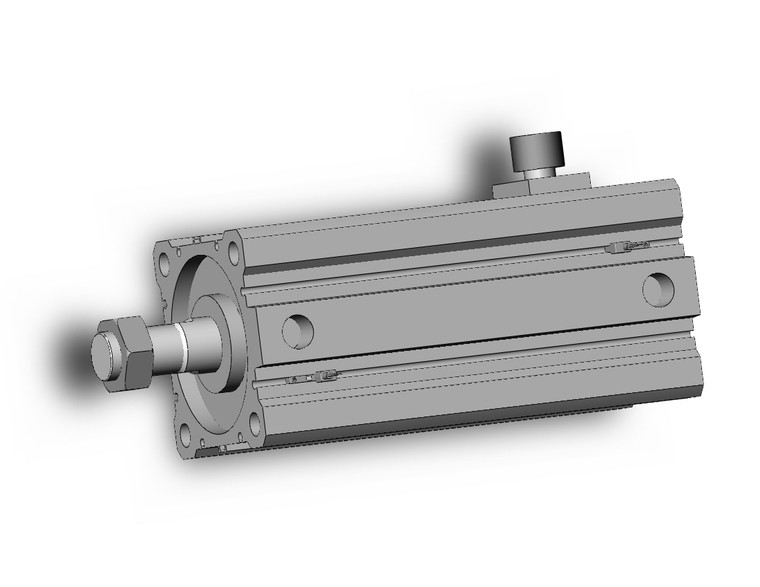

  • SMC CDBQ2A80-100DCM-HL-M9PWVSAPC Cyl, Compact, Locking, Sw Capable
  • SMC CDBQ2A80-100DCM-HL-M9PWVSAPC CBQ2 Series Compact Cylinder
$420.65

Description

CBQ2 Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
    • View AllClose
