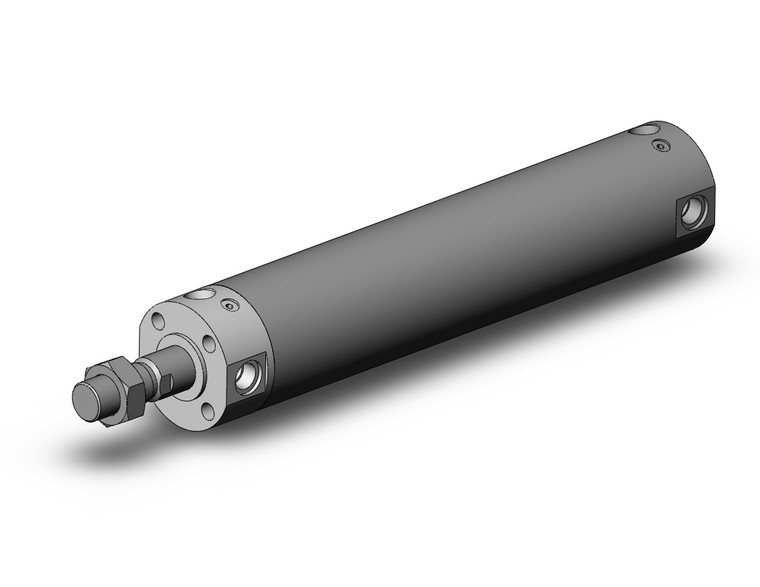

SMC CDG1BA50-200Z CG1 Series Double-Acting Air Cylinder, 50mm Bore, 200mm Stroke
SMC
$127.75
The SMC CDG1BA50-200Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the esteemed CG1 series, renowned for its versatility and robust performance. With a bore size of 50mm and a stroke length of 200mm, this cylinder is designed to meet a wide range of operational requirements.
Constructed with an impact extruded aluminum tube, the CDG1BA50-200Z ensures an exceptionally smooth internal finish, which minimizes break-away pressure and promotes seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is auto switch capable, allowing for easy integration into automated systems, and offers fine adjustment of the auto switch position to enhance operational flexibility.
Engineers will appreciate the standard inclusion of female piston rod threads, which simplifies installation and maintenance. The absence of trunnion mounting female threads further streamlines the setup process. Additionally, the cylinder supports various mounting bracket options, providing adaptability to diverse installation environments.
For detailed specifications and technical insights, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). Optimize your pneumatic systems with the SMC CDG1BA50-200Z, a cylinder that combines advanced engineering with practical functionality, tailored for the modern manufacturing landscape.
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- A (Air Cushion)
- Bore:
- 50mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 200mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
