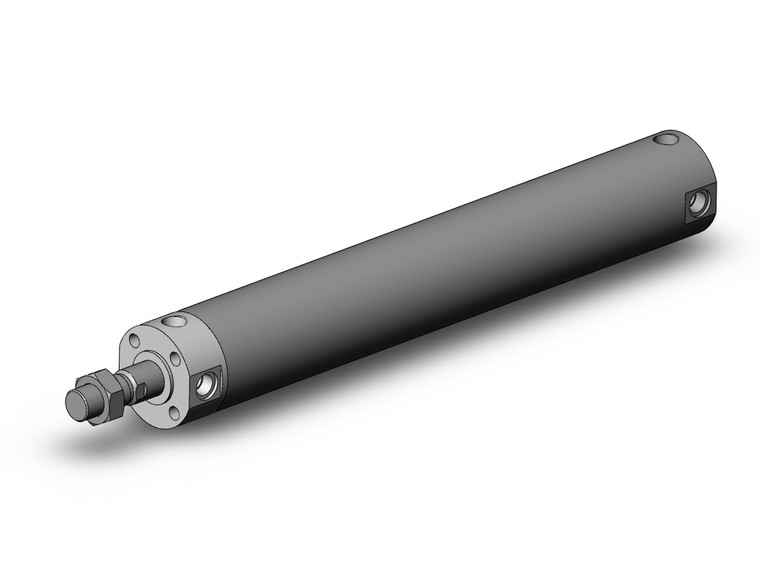

SMC CDG1BN50-300Z CG1 Cylinder, 50mm Bore, 300mm Stroke, Double Acting
SMC
$122.50
The SMC CDG1BN50-300Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the renowned CG1 series, offering unparalleled performance with its impact extruded aluminum tube. This construction ensures an exceptionally smooth finish, facilitating low break-away pressure and seamless stroke action, critical for maintaining efficiency in automated systems.
Designed with versatility in mind, the CDG1BN50-300Z accommodates a range of bore sizes, including 20, 25, 32, 40, 50, 63, 80, and 100 mm, making it adaptable to various operational requirements. The cylinder features a standard female piston rod thread, enhancing compatibility with existing systems and simplifying integration.
Engineers will appreciate the ease of fine-tuning the auto switch position, a feature that enhances operational precision and reduces setup time. The absence of a trunnion mounting female thread further streamlines installation, while the availability of various mounting bracket options provides flexibility in design and application.
For professionals seeking a robust and adaptable solution, the SMC CDG1BN50-300Z CG1 Cylinder is auto switch capable, ensuring seamless integration into automated processes. Explore the full capabilities and technical specifications by accessing the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf).
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- N (Rubber Bumper)
- Bore:
- 50mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 300mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
