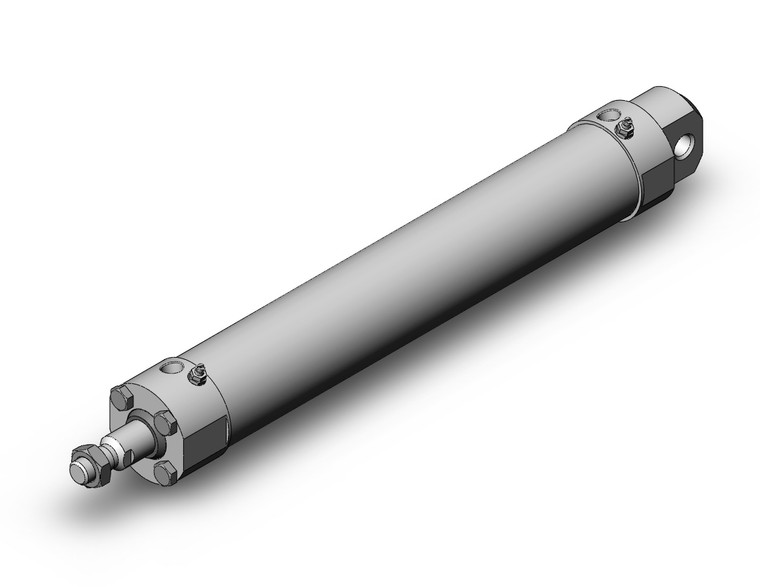

SMC CDG5EA40TNSR-200-X165US Water Resistant Cylinder
SMC
$169.10
C(D)G5-S, Stainless Steel Cylinder, Double Acting, Single Rod
SMC s CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. The CG5-S can be disassembled, allowing replacement of seals, which promotes an extended service life. SMC provides plugs for unused mounting threads to prevent residue build-up in the threads. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water.
- Double acting, single rod CG5-S cylinder- All stainless steel external parts
- Special scraper prevents water from entering cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80 and 100
- Auto switch capable
-
- Manufacturer Part #:
- CDG5EA40TNSR-200-X165US
- Actuator Accessory Type:
- Stainless Steel Cylinders
- Number of Cores:
- 2 pcs. [Or None in the Case of No Switch)
- X Option:
- Inch Rod Thread
- Seal Material:
- NBR
- Style:
- Non-lube Air Cushion
- Mounting:
- Integral Clevis
- Bore Size:
- 40mm
- Lead or Prewired Connector:
- 0.5m [Or None in the Case of No Switch]
- Stroke:
- 200mm
- Auto Switch:
- None
- Magnet:
- Built-in
