SMC CDQSB12-10T Cylinder, Compact
- SKU:
- CDQSB12-10T
- Condition:
- New
- Availability:
- In stock: 17
- Auto Switch:
- No Switch
- Option:
- Rod End Female Thread
- Action:
- Single Acting Spring Extend
- Stroke:
- 10mm
- Bore Size:
- 12mm
- Mounting:
- Through Hole, Both Ends Tapped
- Magnet:
- Built-in
Description

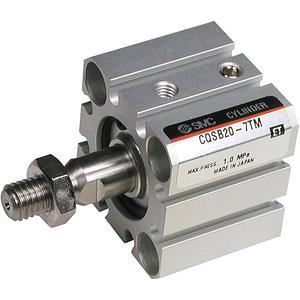

C(D)QS, Compact Cylinder, Single Acting, Single Rod
The CQS single rod, single acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Spring extend or spring return- Bore sizes in mm: 12, 16, 20, 25
- Strokes: 5mm 10mm
- Mounts: through hole, both ends tapped, foot, front or rear flanges
- Variety of switches and a variety of lead wire lengths
-
