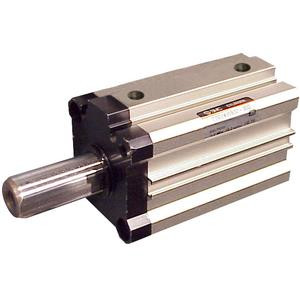

SMC CDQSKB12-15D Compact Cylinder
- SKU:
- CDQSKB12-15D
- Condition:
- New
- Availability:
- In stock: 10
- Magnet:
- D (Built-in)
- Mounting:
- B (Through Hole, Both Ends Tapped)
- Bore Size:
- 12mm
- Stroke:
- 15mm
- Option:
- Standard(Rod End Female Thread)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
C(D)QSK, Compact Cylinder, Double Acting, Single Rod, Non-rotating
The CQSK single non-rotating rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQSK offers standard strokes up to 50mm. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Non-rotating rod- Bore sizes in mm: 12, 16, 20, 25
- Strokes: 5mm through 50mm depending upon bore size
- Mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
- Variety of switches and a variety of lead wire lengths
-
