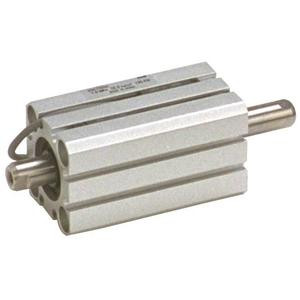

SMC CDQSWB12-10D Compact Cylinder

(No reviews yet) Write a Review
SKU:
CDQSWB12-10D
Condition:
New
Availability:
In stock: 5
Magnet:
D (Built-in)
Mounting:
B (Through Hole, Both Ends Tapped)
Bore Size:
12mm
Stroke:
10mm
Option:
Standard(Rod End Female Thread)
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
$33.85

Description

C(D)QSW, Compact Cylinder, Double Acting, Double Rod

The CQS double rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers strokes up to 50mm. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.

- Rods at both ends of cylinder
- Bore sizes: 12, 16, 20, 25 (mm)
- Strokes from 5mm through 50mm depending upon bore size
- Mounts: through hole/both ends tapped, foot, flange
- Variety of switches and a variety of lead wire lengths
-

Series Catalog

AutoCAD File
