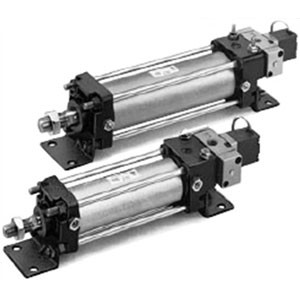

SMC CDV3DN50-75-B54-5-B CV3 Series Valve Mounted Cylinder Double Acting
SMC
$292.75
The SMC CDV3DN50-75-B54-5-B CV3 Series Valve Mounted Cylinder Double Acting is designed for optimal performance and ease of use. This innovative product features a valve mounted directly on a round cylinder, allowing for seamless integration and efficient operation. Some models come equipped with a built-in speed controller, providing precise control over the cylinder's speed. The combination of the cylinder and valve simplifies speed adjustments, enhancing user convenience. Additionally, this cylinder is compatible with auto switch options from various series, including CDVJ, CDVM, CDV3, and CDVS1, offering versatility and adaptability for different applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Double Clevis Style
- Type:
- Aluminum Tube Non-lube Type
- Bore Size:
- Bore Size 50 mm
- Cylinder Stroke:
- Standard Stroke 75 mm
- Suffix For Cylinder:
- Without Rod Boot,With Cushion On Both Ends
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V,AC100V,200V
- Number Of Auto Switches:
- 2 pcs. Or None
- Solenoid Valve Voltage:
- 24 VDC
- Solenoid Valve:
- 2 Position Single
- Electrical Entry:
- Grommet
- Suffix For Cylinder2:
- Rod Retracted When Energized
- Made To Order:
- Standard
