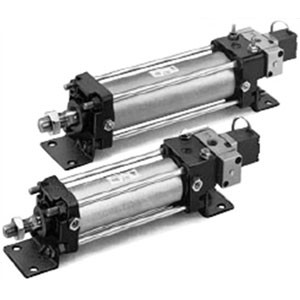

SMC CDV3LN40-50-A53S-1 CV3 Series Valve Mounted Cylinder Double Acting

SMC CDV3LN40-50-A53S-1 CV3 Series Valve Mounted Cylinder Double Acting

SMC
SKU:
CDV3LN40-50-A53S-1
Availability:
Factory Stock
$236.65
Condition:
New
Current Stock:
Description

CV3 Series Valve Mounted Cylinder Double Acting

  • Valve is mounted on a round cylinder;
  • Built-in speed controller for some models;
  • Cylinder with a valve makes it easy to adjust speed;
  • With auto switch (Series CDVJ: CDVJ5, CDVJ3, Series CDVM:;?CDVM5, CDVM5K, CDVM3, CDVM3K, Series CDV3: CDV3, CDV3K,;?Series CDVS1: CDVS1, CDVS1K)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Axial Foot Style
    Type:
    Aluminum Tube Non-lube Type
    Bore Size:
    Bore Size 40 mm
    Cylinder Stroke:
    Standard Stroke 50 mm
    Suffix For Cylinder:
    Without Rod Boot,With Cushion On Both Ends
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V
    Number Of Auto Switches:
    1 pc.
    Solenoid Valve Voltage:
    100 VAC (50/60 Hz)
    Solenoid Valve:
    2 Position Single
    Electrical Entry:
    Grommet
    Suffix For Cylinder2:
    Rod Extended When Energized
    Made To Order:
    Standard
