SMC CG1N20-PS Replacement Parts Seal Kit, CG1 Round Body Air Cylinder, 20 mm Bore
SMC
$4.90
SMC CG1N20-PS Replacement Parts Seal Kit

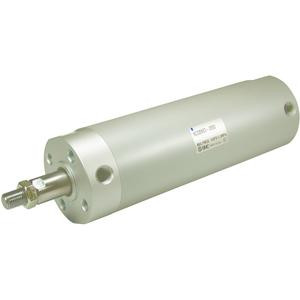

CG1N20-PS is the factory seal kit for the SMC CG1 series round body air cylinder (double acting, single rod), rubber bumper, 20 mm bore. The kit contains the rod seal, piston seal, and tube gasket, plus a 10 g grease pack (GR-S-010), to rebuild a leaking or worn CG1 cylinder and restore sealing without replacing the complete actuator.
The CG1 round body cylinder was discontinued in October 2013 and superseded by the SMC CG1-Z series. Replacement parts remain available to service installed CG1 cylinders; for new designs, cross to the equivalent CG1-Z bore and mounting.
- Fits SMC CG1 / CG1-Z round body air cylinders (double acting, single rod), 20 mm bore
- Contents: rod seal, piston seal, tube gasket, 10 g grease pack (GR-S-010)
- Cushion type: Rubber Bumper
- Series:
- CG1
- Product Type:
- Replacement Parts Seal Kit
- Configuration:
- Double Acting, Single Rod
- Cushion Type:
- Rubber Bumper
- Bore Size:
- 20 mm
- Kit Contents:
- Rod seal, piston seal, tube gasket, 10 g grease pack (GR-S-010)
- Fits Cylinder Series:
- CG1 / CG1-Z
- Superseded By:
- CG1-Z
