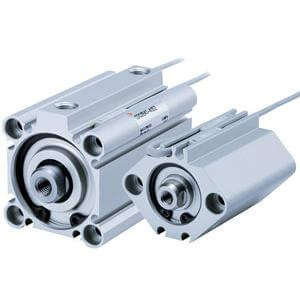

SMC CQ2A25-35DC-XB9 Compact Cylinder, Cq2
- SKU:
- CQ2A25-35DC-XB9
- Condition:
- New
- Magnet:
- None
- Mounting:
- A (Both Ends Tapped)
- Type:
- Pneumatic
- Bore Size:
- 25mm
- Port Thread:
- Rc= 32-100 Bore
- Stroke 1:
- 35mm
- +:
- None
- Stroke 2:
- None
- Body Option:
- C (with Rubber Bumper)
- Auto Switch Groove:
- None (for 12-25 Bore w/o Magnet)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- Stroke Options:
- XB9 (Low Speed Cylinder, 10 to 50mm/s)
Description
C(D)Q2-Z, Compact, Double Acting Single Rod, Stroke Options
The CQ2 compact cylinder is the world s best selling pneumatic cylinder and is supported globally. The CQ2 is available in 15 bore sizes from 12mm to 200mm. It comes standard with male or female piston rod threads. 42 standard options make it one of the most versatile cylinder series on the market. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.
- XB9 for low speed applications (10 to 50mm/sec)- XB13 for low speed applications (5 to 50mm/sec)
- XC8 stroke adjustable for the extend stroke
- XC9 stroke adjustable for the retract stroke
- XC10 dual stroke, double rod type (4 positions)
- XC11 dual stroke, singe rod type (3 positions)
-
