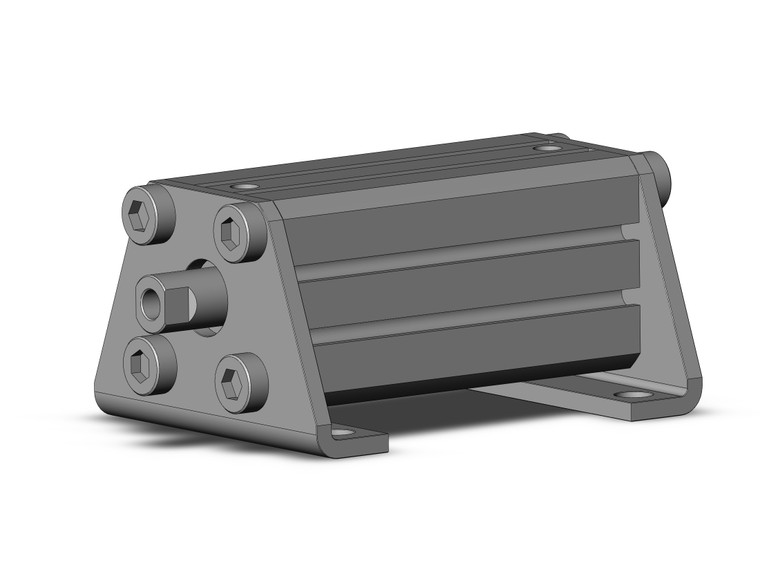

SMC CQSLS20-50DC Compact Cylinder
- SKU:
- CQSLS20-50DC
- Condition:
- New
- Availability:
- In stock: 121
- Mounting:
- Foot
- Bore Size:
- 20mm
- Stroke:
- 50mm
- Option:
- Rubber Bumper
- Auto Switch:
- No Switch
Description

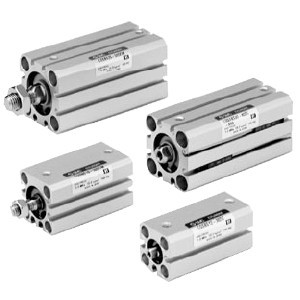

C(D)QS, Compact Cylinder, Double Acting, Single Rod, Anti-lateral Load
The CQS anti-lateral load, single rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. This increased side load version (CQS*S) is available for more demanding applications. The CQS offers standard up to 50mm. Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Anti-lateral load- Bore sizes: 12, 16, 20, 25 (mm)
- Strokes: 5mm through 50mm depending upon bore size
- Mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
- Variety of switches and a variety of lead wire lengths
