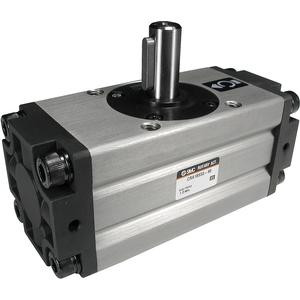

SMC CRA1BW63-90C Rotary Actuator
- SKU:
- CRA1BW63-90C
- Condition:
- New
- Availability:
- In stock: 2
- Magnet:
- None
- Mounting:
- B (Basic)
- Shaft Type:
- W (Double Shaft)
- Size:
- 63mm
- Rotation Angle:
- 90??
- Air Cushion:
- C (Cushion)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- Port Thread:
- Rc
Description
the cra1 rack and amp; pinion rotary actuator offers very high torque-to-size and accurate positioning. bore sizes are 30, 50, 63, 80 and 100mm. units may be ordered auto-switch capable and with cushions. dimensions range from 3" x 4" x 2" to a maximum of 8" x 9.65" x 4.41". single shaft end or double shaft end models are available.
- standard type rotary actuator
- 3 mounting types available
- single or double rod end available
- bores sizes: 50mm ~ 100mm
- auto switch capable
