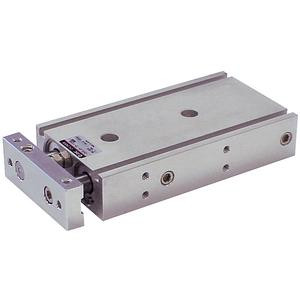

SMC CXSL6-30R Guided Cylinder
- SKU:
- CXSL6-30R
- Condition:
- New
- Bore Size:
- ???6
- Thread Type:
- Bore 6-20: M Thread, Bore 25-32: Rc
- Stroke:
- 30mm
- Auto Switch:
- No Switch
Description
CXSL-R, Dual Piston Rods with Retract End Lock, Ball Bushing Bearing
The CXS-R Series is a dual piston actuator with non-rotating accuracy 0.1 enhanced with a retract end lock feature for added machine safety. The end lock will engage when air pressure is lost and can be released by reintroducing air pressure or via a manual release bolt. The CXSL-R high precision ball bushing bearing type allows for smooth operation that ensures stable travel resistance.
-
- Bore sizes: 6, 10, 15, 20, 25, 32mm- Non-rotating accuracy: 0.1
- Stroke lengths up to 100mm
- Auto switch capable
-
