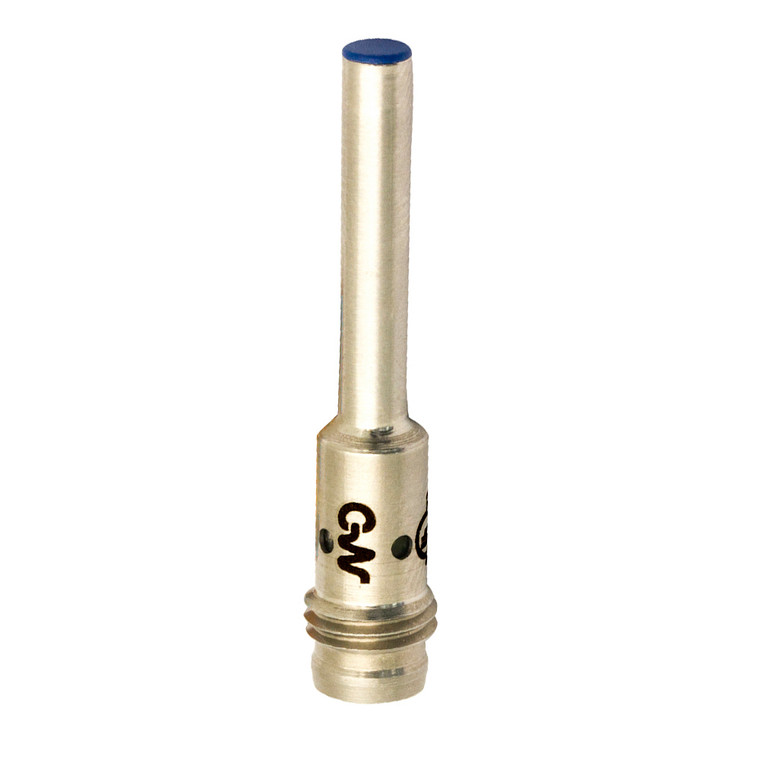

Datasensing AC1/AN-1F Sensors
Datasensing
$74.64
The Datasensing AC1/AN-1F Sensors are designed for precision and reliability in industrial applications. Featuring a smooth stainless steel housing with a compact Ø4 mm diameter, these sensors are equipped with a 360° visible yellow output LED for easy status monitoring. Choose between models with a 2 m PVC cable or an M8 connector for versatile installation options. With an IP67 protection rating, these sensors are built to withstand harsh environments.
Key specifications include a nominal sensing distance of 0.8 mm and an operating distance of 0 to 0.65 mm, making them ideal for detecting standard targets of 4x4 mm FE360. The sensors offer a high switching frequency of 5kHz and operate within a voltage range of 10 to 30Vdc. They are equipped with essential protective features such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety.
The AC1/AN-1F Sensors are shielded for flush mounting and are constructed from robust AISI303 stainless steel, with an active head made of PBT. They are designed to perform in temperatures ranging from -25°C to +70°C, making them suitable for a wide range of industrial environments. With CE and cULus approvals and compliance with EMC standards, these sensors deliver reliable performance and peace of mind.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 4x4mm FE360
- Correction Factor:
- copper: 0,28 ± 10% / aluminium: 0,21 ± 10% / brass: 0,32 ± 10% / stainless steel: 0,63 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø4 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 4g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø4
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
