Datasensing AC6/CN-1A Sensors

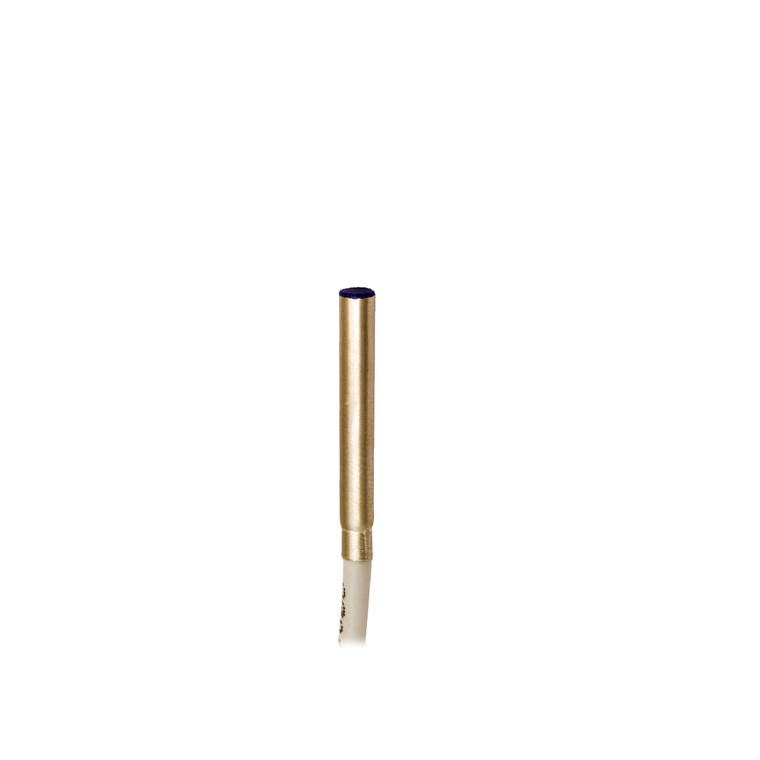

The Datasensing AC6/CN-1A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a smooth stainless steel housing with a compact Ø4 mm diameter, these sensors are equipped with a yellow output LED that is visible from 360°, ensuring easy status monitoring. The sensors come with a 2-meter PVC cable for flexible installation options and are also available in M8 connector models. With an IP67 protection degree, they are built to withstand harsh environments. These sensors offer a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, making them ideal for proximity detection applications. They are designed to work with a standard target size of 4x4mm FE360 and have a correction factor for various materials such as copper, aluminum, brass, and stainless steel. The sensors exhibit minimal thermal drift and high repeat accuracy, ensuring consistent performance. The AC6/CN-1A sensors feature an NPN output type with a normally closed (NC) output function and a switching frequency of 5kHz. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads. Constructed with AISI303 stainless steel housing and a PBT active head, these sensors are durable and reliable. They are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2. Additionally, they are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. With an operating temperature range of -25°C to +70°C, the Datasensing AC6/CN-1A Sensors are suitable for a wide range of industrial applications.
