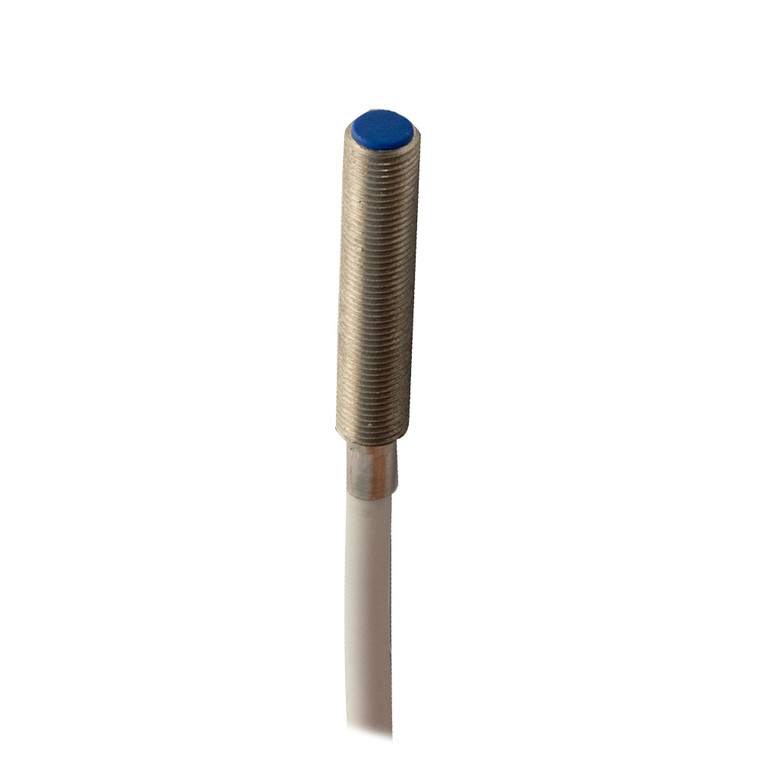

Datasensing AD1/AP-1A8F Sensors

The Datasensing AD1/AP-1A8F Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M5 standard flush mount, these sensors offer a nominal sensing distance of 0.8mm and an operating distance range of 0 to 0.65mm. They are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection with a switching frequency of 5kHz. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. Constructed with a durable AISI303 stainless steel housing and a PBT active head, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. They are equipped with a 2m PUR cable for easy connectivity and feature yellow LED indicators for output state visibility. The sensors are designed with multiple protective features, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. With a high repeat accuracy of < 5% and a thermal drift of Sr < 10%, these sensors ensure consistent performance. They are compatible with various materials, with correction factors for copper, aluminum, brass, and stainless steel. The sensors are CE and cULus approved, ensuring compliance with international standards, and are designed to withstand shocks and vibrations as per IEC standards. Supplied with two M5x0.5 nuts, these sensors are ready for immediate installation and operation in temperatures ranging from -25°C to +70°C.
