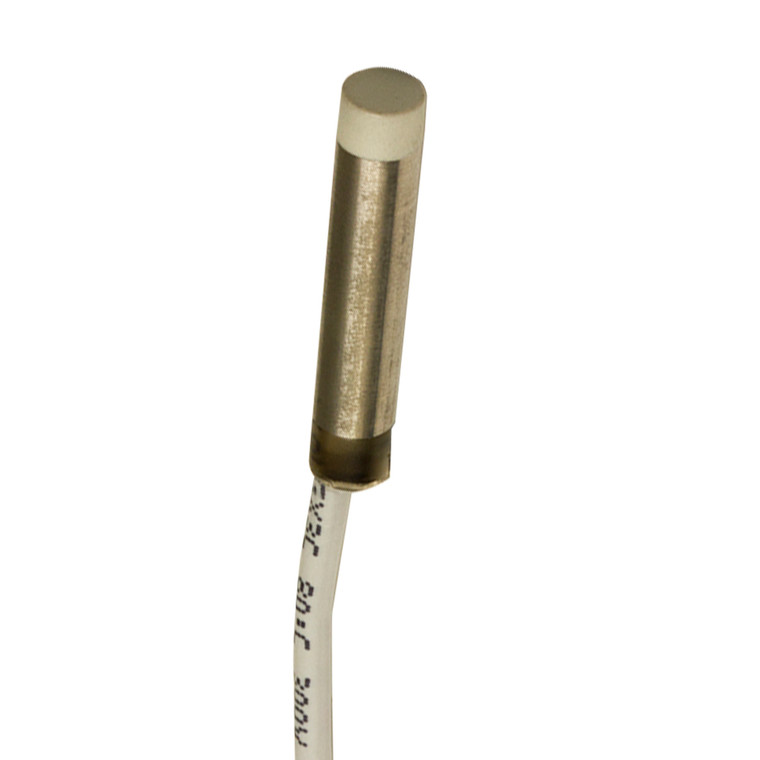

Datasensing AH6/AN-2A Sensors
Datasensing
$45.03
The Datasensing AH6/AN-2A Sensors are designed for precision and reliability in industrial applications. With an extremely compact size of Ø6.5 mm and a short unshielded body, these inductive sensors are perfect for tight spaces. The metal housing, made from durable AISI303 stainless steel, ensures longevity and resistance to harsh environments. The sensor features a 360° visible LED status indicator for easy monitoring and boasts an IP67 protection degree, making it dust-tight and water-resistant.
These sensors offer a nominal sensing distance of 2.5mm and an operating distance of 0 to 2.02mm, with a standard target size of 8x8mm FE360. They are equipped with a NO/NPN output type and a switching frequency of 5kHz, ensuring fast and accurate detection. The sensors are protected against electrical damages with features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection.
The AH6/AN-2A Sensors are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel. They operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 10mA and a load current of ? 200mA. The sensors are designed to withstand temperatures from -25°C to +70°C and are compliant with CE and UR approvals, as well as EMC compatibility standards.
For added convenience, the sensors come with a 2m PVC cable for easy installation. Optional ATEX models for category 3 environments are available upon request, providing additional safety in explosive atmospheres. Whether you need standard or long-distance models, the Datasensing AH6/AN-2A Sensors deliver reliable performance in a compact and robust package.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,39 / aluminium: 0,45 / brass: 0,54 / stainless steel: 0,81
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø6,5 short case no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø6,5
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
