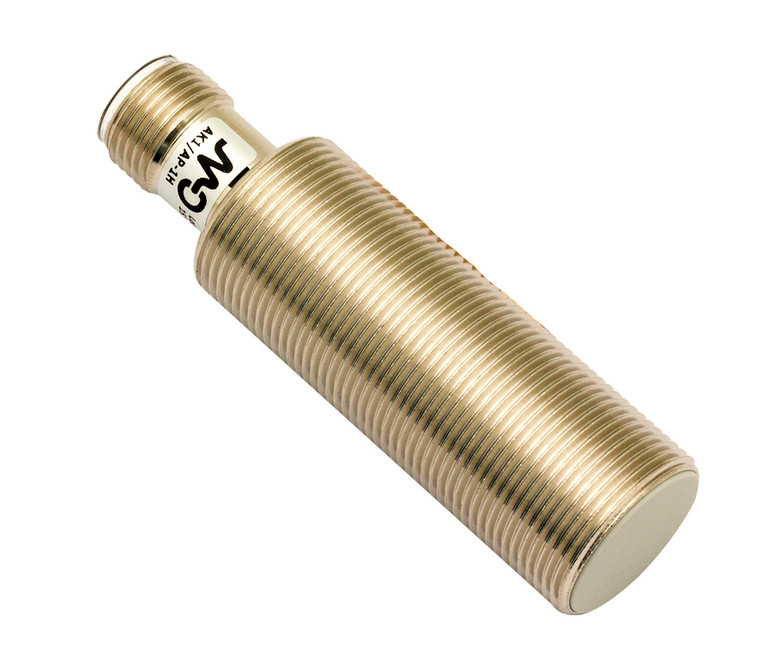

The Datasensing AK1/AN-3H Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, these sensors are ideal for precise proximity detection. They feature a standard target size of 24x24mm FE360 and offer correction factors for different materials, including copper, aluminum, brass, and stainless steel. The sensors exhibit minimal thermal drift and high repeat accuracy, ensuring reliable performance.
These M18 standard flush mount sensors come with an NPN output type and a normally open (NO) output function, supporting a switching frequency of up to 300Hz. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. The sensors are equipped with a yellow LED indicator for output state and feature short-circuit, reverse polarity, and impulsive overvoltage protection.
Constructed with a nickel-plated brass housing and a PBT active head, the sensors are designed for durability and reliability. They are shielded for mounting and have a degree of protection rated at IP67, making them suitable for harsh environments. The sensors are compatible with M12 plug connections and come with two M18x1 nuts for easy installation. With approvals from CE and UR, and compliance with EMC standards, these sensors are a dependable choice for industrial applications.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 55g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
