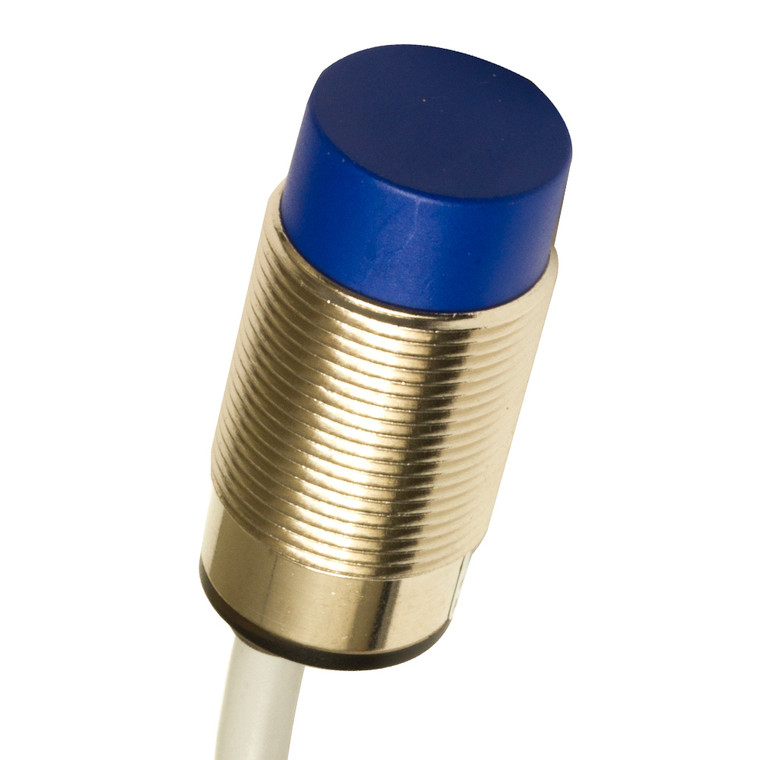

Datasensing AK6/AP-2A Sensors
Datasensing
$52.32
The Datasensing AK6/AP-2A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M18 short unshielded design, these sensors offer a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient signal processing with a switching frequency of 2kHz.
Constructed with a durable nickel-plated brass housing and an active head made of PBT, these sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a mechanical protection rating of IP67. The sensors are equipped with a 2m PVC cable for easy connectivity and feature yellow LED indicators for output state visibility.
With a wide range of models available, including standard, long-distance, and ATEX category 3 models upon request, the AK6/AP-2A sensors offer versatility and adaptability to meet specific needs. Additional features include short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, ensuring reliable operation and longevity.
The sensors are compliant with CE and UR approvals and meet EMC compatibility standards according to IEC 60947-5-2. They are also designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M18x1 nuts, these sensors are easy to install and maintain, making them a valuable addition to any industrial setup.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,43 / aluminium: 0,38 / brass: 0,75 / stainless steel: 0,31
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 short case no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 95g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
