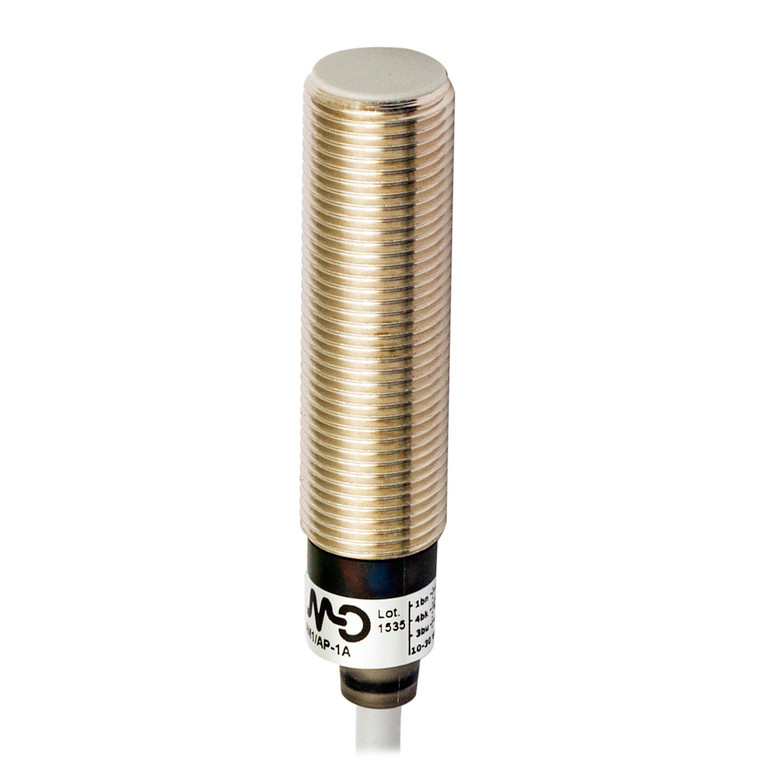

Datasensing AM1/A0-3A Sensors

The Datasensing AM1/A0-3A Sensors are high-performance inductive sensors designed for precision and reliability. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. They feature a correction factor for various materials, including copper (0.42), aluminium (0.47), brass (0.55), and stainless steel (0.8), ensuring accurate detection across different surfaces. These sensors are equipped with a robust M12 standard flush mount and offer both NPN and PNP output types with a normally open (NO) output function. They operate at a switching frequency of 750Hz and support an operating voltage range of 10 to 30Vdc. The sensors are designed to handle a load current of 3 to 100mA, with a no-load supply current of ? 10mA and a leakage current of ? 0.8mA. The output voltage drop is minimal at ? 2.8V @100mA, and they can withstand a maximum ripple content of ? 10%. For enhanced usability, the sensors include a yellow LED indicator for output state and feature a time delay before availability of ? 50ms. They are equipped with short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection, ensuring durability and safety in various applications. The sensors are housed in nickel-plated brass with an active head made of PBT, offering a high degree of mechanical protection (IP67) and resistance to shocks and vibrations as per IEC standards. The sensors come with a 2m PVC cable for easy connections and are supplied with two M12x1 nuts for secure mounting. They are designed to operate in temperatures ranging from -25°C to +70°C, making them suitable for a wide range of environments. With CE and UR approvals and EMC compatibility with IEC 60947-5-2, the Datasensing AM1/A0-3A Sensors are a reliable choice for industrial applications requiring precise proximity detection.
