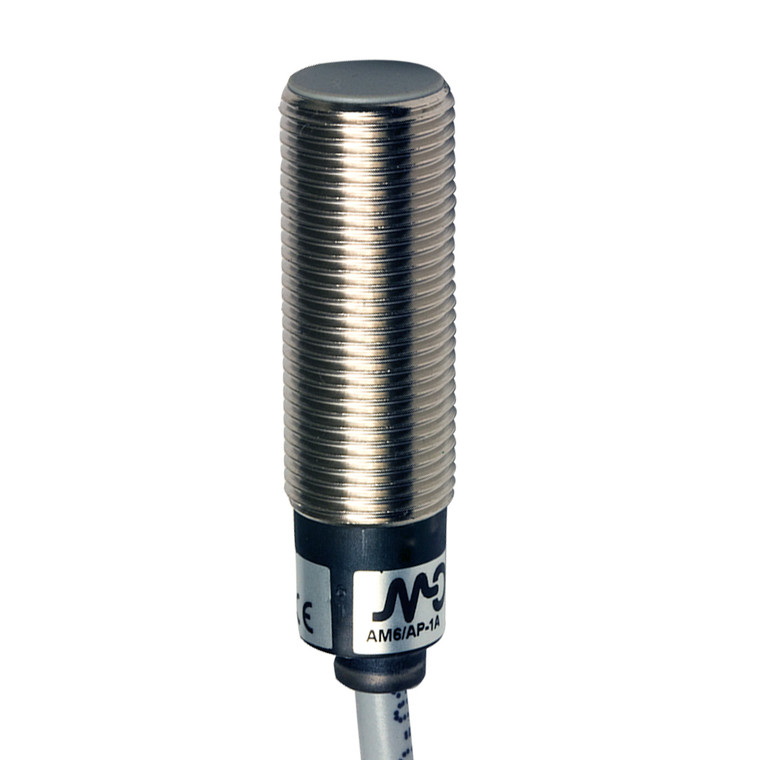

Datasensing AM6/AP-3AAN Sensors

The Datasensing AM6/AP-3AAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring a compact M12 shielded short case, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring reliable performance with a switching frequency of 2kHz. Constructed with a robust nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, offering an IP67 mechanical protection rating. The sensors are designed to operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. They also feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety in operation. The sensors come with a 2m PVC cable for easy installation and are supplied with two M12x1 nuts for secure mounting. With a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5%, these sensors provide consistent and accurate performance. The yellow LED indicator provides a clear output state, and the sensors are approved with CE and UR certifications, meeting IEC 60947-5-2 EMC compatibility standards. Ideal for use in environments with temperatures ranging from -25°C to +70°C, the Datasensing AM6/AP-3AAN Sensors are designed to handle shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. With a tightening torque of 10Nm and a maximum ripple content of ? 10%, these sensors are a reliable choice for industrial automation and control systems.
