Datasensing AM6/CP-1CVE80 Sensors
Datasensing
$62.72

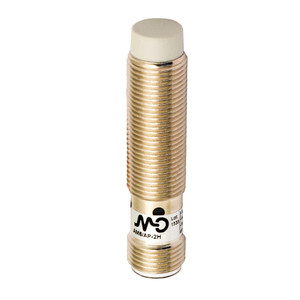

The Datasensing AM6/CP-1CVE80 Sensor is a high-performance inductive sensor designed for precision and reliability. Featuring a compact M12 short shielded design, this sensor is equipped with a 200mm PVC cable and a 90° M12 plug for easy installation. It operates with a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making it ideal for detecting standard targets of 12x12mm FE360. The sensor boasts a PNP output type with an NC output function, ensuring efficient proximity detection with a switching frequency of 2kHz.
Engineered for durability, the sensor is housed in nickel-plated brass with an active head made of PBT, providing robust protection against environmental factors. It is equipped with essential features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, ensuring reliable performance in various industrial settings. The sensor's thermal drift of Sr is less than 10%, and it maintains a repeat accuracy of less than 5% at 24V and 23°C ±5°C.
With a mechanical protection rating of IP67, the sensor is resistant to dust and water ingress, making it suitable for harsh environments. It operates efficiently within a temperature range of -25°C to +70°C and is compliant with EMC standards IEC 60947-5-2. The sensor also includes yellow LED indicators for output state visibility and comes with two M12x1 nuts for secure mounting. Ideal for applications requiring precise proximity detection, the Datasensing AM6/CP-1CVE80 Sensor is a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,22 / aluminium: 0,31 / brass: 0,41 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 200mm PVC Cable + M12 Plug - 90° output
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L = 39,8mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
