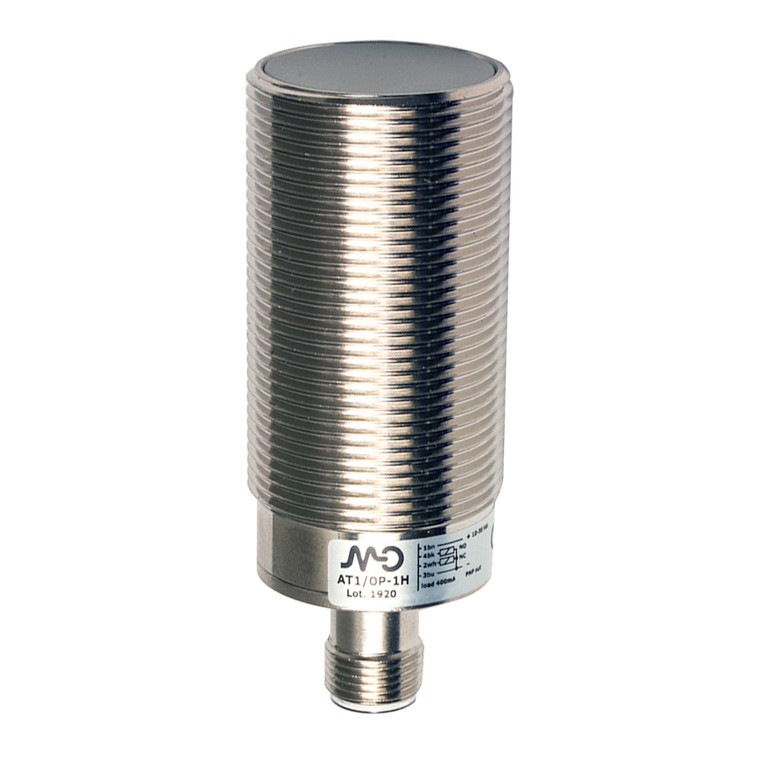

Datasensing AT1/AP-3HAN Sensors
Datasensing
$95.40
The Datasensing AT1/AP-3HAN Sensors are high-performance inductive sensors designed for reliable proximity detection. Featuring a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, these sensors are ideal for various industrial applications. The M30 standard flush mount design ensures easy installation, while the shielded housing made of nickel-plated brass provides durability and protection against harsh environments. With a PNP output type and NO output function, these sensors offer a switching frequency of 200Hz and operate efficiently within a voltage range of 10 to 30Vdc.
The sensors are equipped with advanced protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance. The yellow LED indicator provides a clear output state, and the sensors are compatible with IEC 60947-5-2 EMC standards. With a mechanical protection rating of IP67, they are resistant to dust and water ingress, making them suitable for challenging conditions. The sensors come with two M30x1.5 nuts for secure mounting and are approved with CE and UR certifications. Operating effectively in temperatures ranging from -25°C to +70°C, these sensors are built to withstand shocks and vibrations as per IEC standards.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,70
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M30x1.5
- Dimensions:
- M30 x 1,5 / L = 76mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
