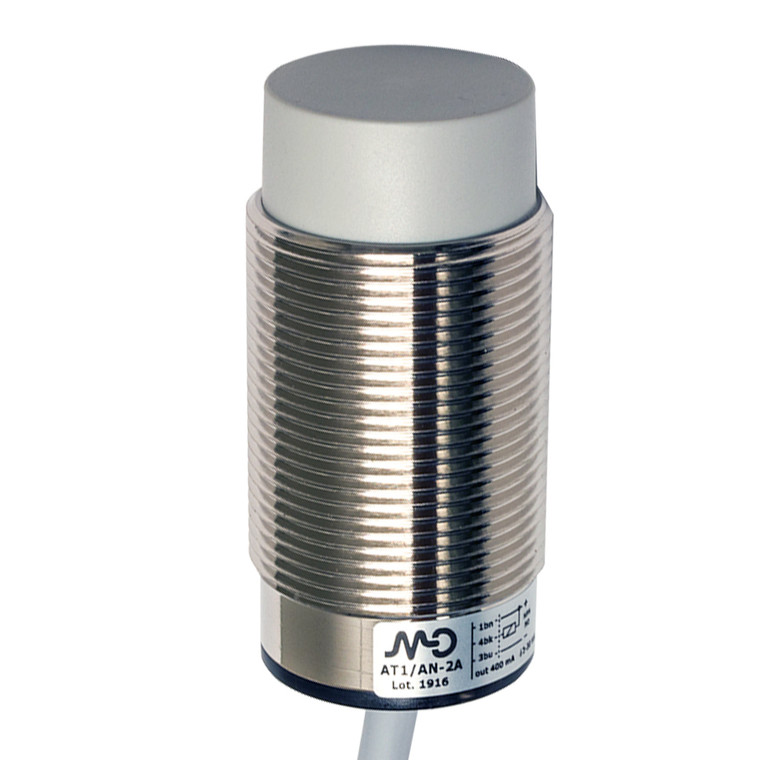

Datasensing AT1/CP-2A Sensors
Datasensing
$57.42
The Datasensing AT1/CP-2A Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring an M30 unshielded design with a normally closed (NC) PNP output, these sensors are equipped with a 2-meter axial cable for easy installation. They offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them suitable for detecting standard targets of 45x45mm FE360.
Engineered with a robust nickel-plated brass housing and PBT active head material, the AT1/CP-2A sensors ensure durability and longevity, even in harsh environments. They are protected against electrical damages with features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 20mA and a load current capacity of ? 400mA.
The AT1/CP-2A sensors are designed to withstand extreme temperatures ranging from -25°C to +70°C and are compliant with CE and UR approvals, ensuring high standards of safety and performance. With a degree of protection rated at IP67, these sensors are resistant to dust and water ingress, making them ideal for demanding industrial settings. Additionally, they come with supplied accessories, including two M30x1.5 nuts, for secure mounting.
Whether you require standard, long-distance, or ATEX models, the Datasensing AT1/CP-2A Sensors offer versatile solutions with options for 2, 3, and 4-wire configurations and complementary outputs (NO + NC) available on request.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 230g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
