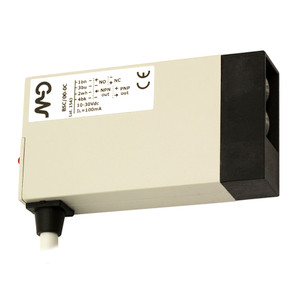

Datasensing BSC/00-0C Sensors
Datasensing
$182.41
The Datasensing BSC/00-0C Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a retro-reflective function with an impressive nominal sensing distance of 8 meters, these sensors are equipped with a trimmer for sensitivity adjustment, ensuring optimal performance in diverse environments. The sensors offer a multifunctional DECOUT® output with NPN/PNP selectable and NO/NC selectable options, providing versatile logic connection possibilities.
Operating on a wide voltage range of 10 to 30VDC, the BSC/00-0C sensors boast a high switching frequency of 80Hz and a rapid response time of 6.25ms, making them suitable for fast-paced operations. The robust design includes short-circuit and reverse polarity protection, ensuring durability and safety. The sensors are housed in a compact cubic ABS casing with dimensions of 16x37x64mm and are completely filled with resin for enhanced protection against environmental factors.
The LED status indicator provides clear output status visibility, while the IP65 degree of protection ensures resistance to dust and water ingress. The sensors are equipped with a 2-meter PVC cable with a 90° connection for easy installation. Additionally, they come with ST01 mounting brackets and screws for secure attachment. With CE approvals and EMC compatibility according to EN 60947-5-2 standards, the Datasensing BSC/00-0C Sensors are a reliable choice for high-performance sensing needs.
- Nominal sensing distance:
- 8m
- Repeat Accuracy:
- ? 10%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retro-reflective
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status)
- Time delay before availability:
- 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Weight:
- 185g
- Housing Material:
- ABS
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-39
- Degree of protection:
- IP65
- Supplied Accessories:
- ST01 mounting brakets and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
