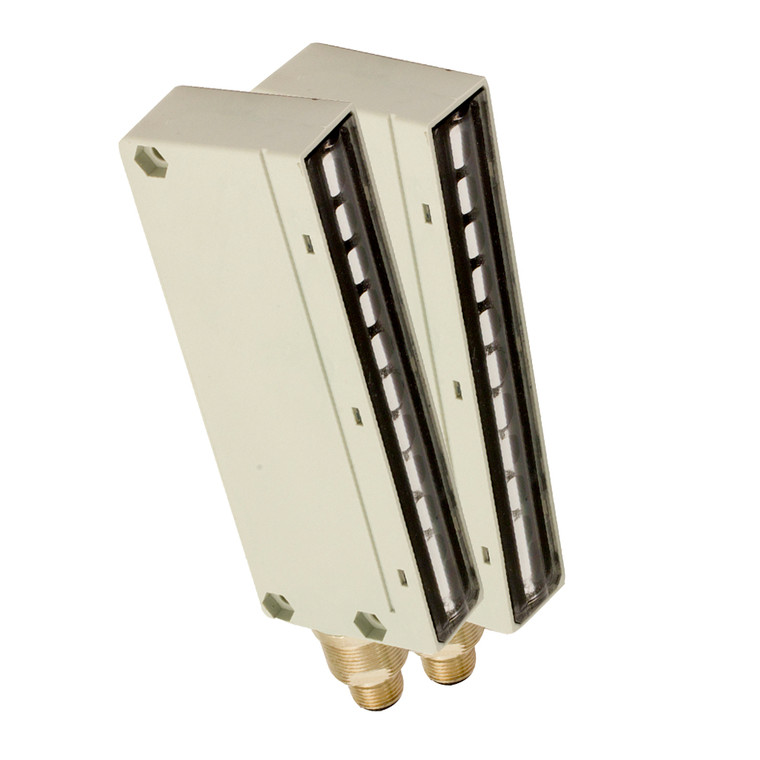

Datasensing BX10SR/0A-AB6AAT Sensors
Datasensing
$1,184.34
The Datasensing BX10SR/0A-AB6AAT Sensors offer a robust area sensor kit featuring 10 beams with a nominal sensing distance ranging from 0.3 to 6 meters. Designed for precision, it includes a sensitivity adjustment trimmer and a controlled height of 90mm, making it capable of detecting objects as small as Ø 5mm. The emitter-receiver function operates with an output type of NPN + PNP and a switching frequency of 110Hz, ensuring rapid response times of 500µs for light/dark transitions and 5ms for dark/light transitions.
This sensor kit is engineered for durability and safety, with approvals for hazardous environments (II 2GD Ex db mb IIC T6 Gb, Ex mb tb IIIC T85°C Db) and features such as short-circuit and reverse polarity protection. It operates efficiently within a voltage range of 10 to 26VDC, with a no-load supply current of 75mA and a load current of up to 100mA. The housing is made from PBT, providing IP67 mechanical protection, and the active head is constructed from PC material.
The kit includes essential accessories such as 4 nuts M18x1, an adjustment key, and 2 90° angled brackets for easy installation. LED indicators on the emitter and receiver provide clear status updates, with green for power ON, yellow for output state, and red for alignment. With a weight of 1400g and dimensions of 45x145x20mm, this sensor kit is compact yet powerful, suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 0,3 6m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-AB6AAT
- Emitter Code:
- BX10S/00-AB6AAT
- Receiver Code:
- BX10R/AD-AB6AAT
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 110Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 1400g
- Housing Material:
- PBT
- Connections:
- XLPO 5m
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus Ex: II 2GD Ex db mb IIC T6 Gb, Ex mb tb IIIC T85°C Db - II 2GD Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
