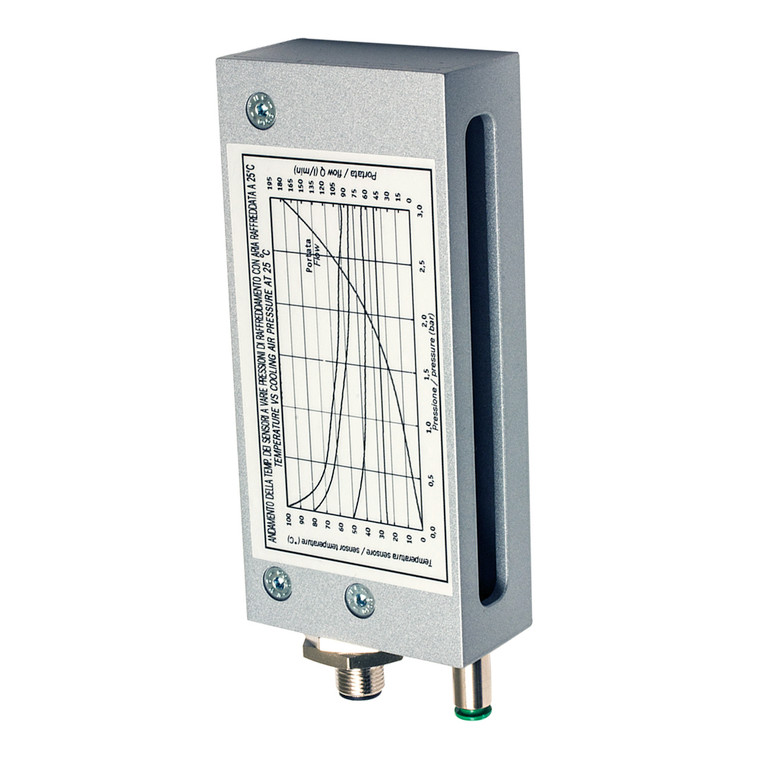

Datasensing BX80A/2P-1H Sensors

The Datasensing BX80A/2P-1H Sensors are designed for high-performance area sensing applications. Featuring a robust aluminium enclosure, these sensors are built to withstand demanding environments with a protection degree of IP67, ensuring complete protection against electrical damages. The sensor operates with a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for precise detection tasks. Equipped with a microprocessor-based circuit, the BX80A/2P-1H offers sensitivity adjustment for enhanced accuracy. It features a PNP output type with NO/NC output functions, providing flexibility in various applications. The sensor's response time is a swift 10ms, ensuring quick and reliable performance. The BX80A/2P-1H is designed with a strong cubic housing and a special metallic enclosure for high-duty use. It includes LED indicators for power, alignment, and output state, allowing for easy monitoring. The sensor is protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring durability and longevity. With a nominal sensing distance of 0 to 1.5 meters and a thermal drift of Sr ?10%, this sensor is capable of detecting objects as small as Ø 6mm. It operates on a voltage range of 12 to 24 VDC, with a no-load supply current of 50mA and a load current of ?100mA. The sensor is compatible with M12 plug connections and comes with supplied accessories, including two nuts M18x1, an adjustment key, and a 90° angled bracket. The Datasensing BX80A/2P-1H Sensors are CE and cULus approved, ensuring compliance with international standards. They are designed to operate in temperatures ranging from -25°C to +50°C and can be stored in temperatures as low as -40°C and as high as +80°C. With EMC compatibility to IEC 60947-5-2 and resistance to shocks and vibrations, these sensors are a reliable choice for industrial applications.
