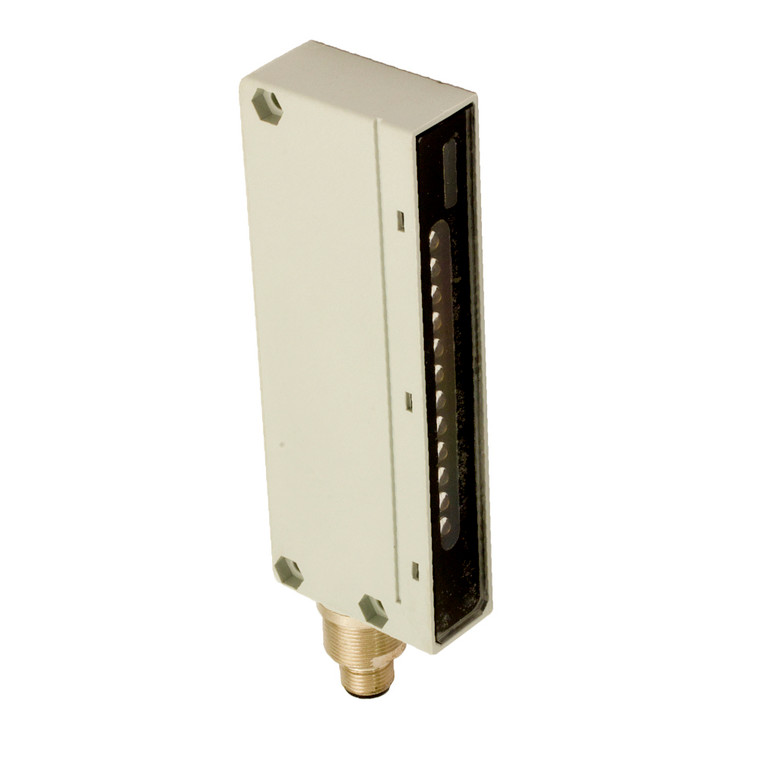

Datasensing BX80S/10-0H Sensors
Datasensing
$390.10
The Datasensing BX80S/10-0H Sensors are designed for precision and durability, featuring a robust cubic housing with a metallic enclosure for high-duty applications. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced performance. The sensitivity adjustment feature allows for precise detection, while the strong cubic housing ensures reliability in demanding environments. The sensors operate on a voltage range of 12 to 24 VDC and include complete protection against electrical damages, such as short-circuit and reverse polarity protection. The IP67 protection degree ensures resistance to dust and water, making them suitable for various industrial applications. The sensors emit infrared light at 880nm and are designed to withstand external light interference up to 4,500 lux. With a compact design measuring 44mm x 120mm x 20mm and weighing between 260 to 300g, they are easy to install using the M12 plug connection. The package includes essential accessories like nuts, an adjustment key, and angled brackets for convenient setup. These sensors are CE and cULus approved, ensuring compliance with international standards for safety and performance.
- Nominal sensing distance:
- depending on the receiver
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Depending on the receiver
- number of rays:
- 12
- Sensitivity adjustment:
- Yes
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
