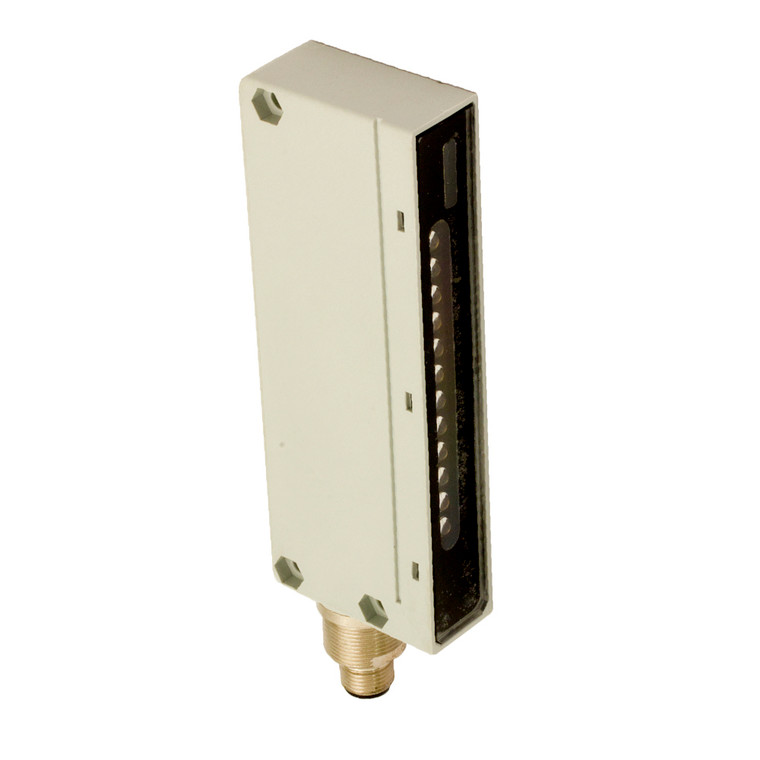

Datasensing BX80S/10-0HAN Sensors

The Datasensing BX80S/10-0HAN Sensors are designed for precision and reliability in industrial environments. These area sensors feature a controlled height of 70 mm and an operating distance of up to 2 meters, making them ideal for various applications. The microprocessor-based circuit ensures accurate sensitivity adjustment, while the strong cubic housing and metallic enclosure provide durability for high-duty use. With a protection degree of IP67, these sensors offer complete protection against electrical damages and environmental factors. Key features include a nominal sensing distance that depends on the receiver, a thermal drift of Sr ?10%, and a beams space of 6mm. The sensors are equipped with 12 rays and offer sensitivity adjustment for optimal performance. Operating on a voltage range of 12 to 24 VDC, they have a no-load supply current of 100mA and a maximum ripple content of ?10%. The green LED indicator signals power ON, and the sensors have a time delay before availability of 500ms. Safety features include short-circuit protection with auto reset, reverse polarity protection, and impulsive overvoltage protection. The sensors emit infrared light at 880nm and can withstand interference from external light sources up to 1,500 lux (incandescent lamp) and 4,500 lux (sunlight). The robust design includes a PBT housing material, PC active head material, and an M12 plug connection, with a tightening torque of 25Nm. The sensors operate within a temperature range of -25°C to +50°C and can be stored between -40°C and +80°C. They are approved with CE cULus Ex certifications and comply with EMC compatibility standards IEC 60947-5-2. The package includes supplied accessories such as 2 nuts M18x1, 1 adjustment key, and 1 90° angled bracket, ensuring easy installation and setup.
