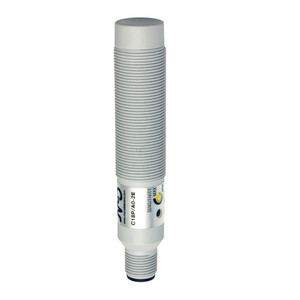

Datasensing C18P/BP-2E Sensors
Datasensing
$131.09
The Datasensing C18P/BP-2E Sensors are high-performance capacitive sensors designed for versatile applications. Featuring an M18 plastic unshielded housing, these sensors offer a nominal sensing distance of 3 to 12mm with a thermal drift of less than 20%. They are equipped with PNP NO+NC output functions and support a switching frequency of 50Hz. The sensors operate on a DC supply voltage range of 10 to 40V, ensuring high noise immunity and reliable performance in various environments.
With adjustable sensitivity, these sensors can be fine-tuned to meet specific application needs. They are built with a robust polyester housing and active head material, providing durability and resistance to harsh conditions. The sensors are equipped with a yellow LED indicator for object detection and offer short-circuit, reverse polarity, and impulsive overvoltage protection.
The C18P/BP-2E Sensors are designed for easy installation with an M12 plug connection and come with supplied accessories, including a screwdriver and two M18 nuts. They are compliant with CE and cULus approvals and meet EMC compatibility standards IEC 60947-5-2. With an IP67 and IP68 degree of protection, these sensors are suitable for use in demanding environments, offering reliable performance across a wide operating temperature range of -35°C to +85°C.
- Nominal sensing distance:
- 3 12mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 50Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- ? 2,5V @ IL = 200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- polarity reversal, overvoltage
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 65g
- Housing Material:
- Polyester
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 2,6Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67, IP68
- Supplied Accessories:
- screw driver, 2 x M18 nuts
- Mechanical Protection:
- IP67, IP68
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
