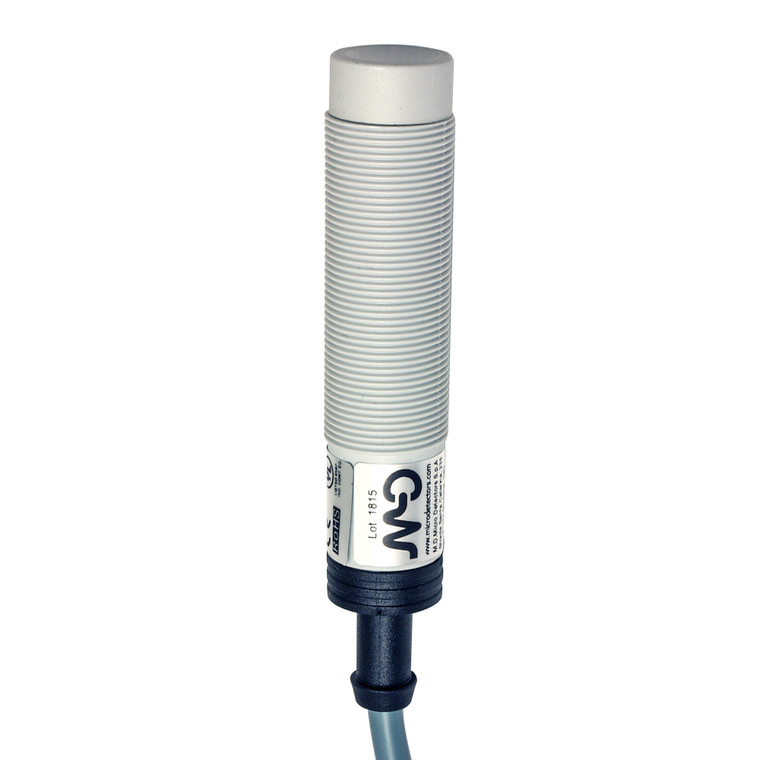

Datasensing C18P/C0-2A Sensors

The Datasensing C18P/C0-2A Sensors are high-performance capacitive sensors designed for reliable detection in various industrial applications. Featuring an M18 plastic unshielded housing, these sensors offer a nominal sensing distance of 3 to 12mm with minimal thermal drift and a repeat accuracy of 5%. The adjustable sensitivity allows for precise customization to suit specific needs, while the robust polyester construction ensures durability in harsh environments. Operating on a wide voltage range of 20 to 250Vac at 50-60Hz, these sensors boast high noise immunity and are equipped with SCR output type and NC output function. The switching frequency of 10Hz and a load current capacity of up to 500mA make them suitable for dynamic applications. The sensors are protected against short-circuits, polarity reversal, and overvoltage, ensuring reliable performance. With a compact design of M18 x 1 / L = 99mm and a weight of 150g, the sensors are easy to install using the included screw driver and M18 nuts. The 2m PVC cable connection provides flexibility in mounting, while the yellow LED indicator clearly signals object detection. Rated for operation in temperatures ranging from -35°C to +85°C, these sensors are built to withstand extreme conditions without freezing. Compliant with CE and cULus approvals, and meeting EMC compatibility standards IEC 60947-5-2, the Datasensing C18P/C0-2A Sensors are engineered to deliver reliable performance with IP67 and IP68 mechanical protection, making them ideal for demanding industrial environments.
