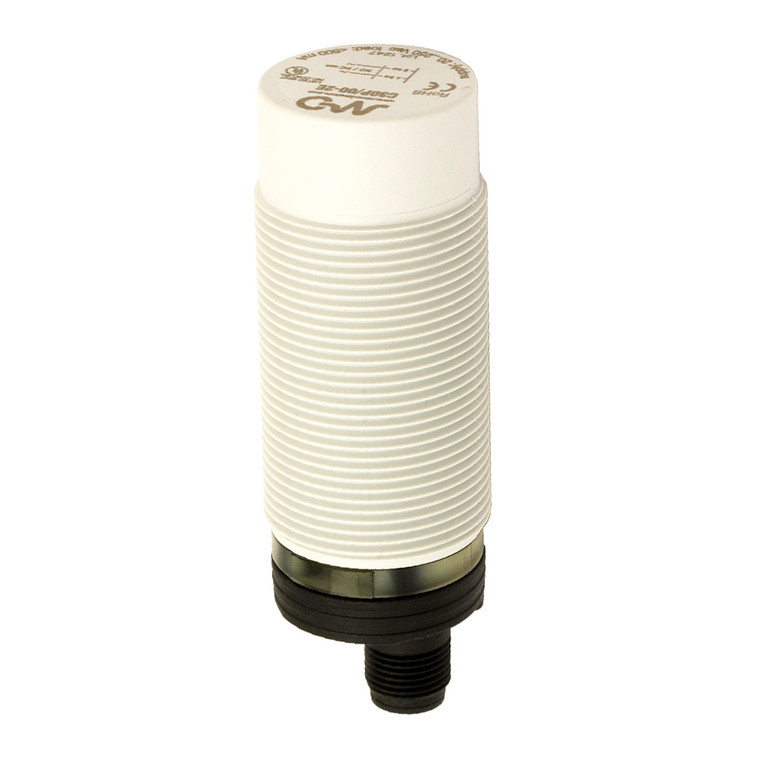

Datasensing C30P/00-2E Sensors
Datasensing
$189.07
The Datasensing C30P/00-2E Sensors are high-performance capacitive sensors designed for versatile applications. Featuring a robust M30 plastic unshielded housing, these sensors offer a nominal sensing distance of 4 to 25mm with a thermal drift of less than 20%. They are equipped with adjustable sensitivity and can operate on both DC and AC supply voltages, ensuring high noise immunity and reliable performance in various environments. The sensors support NO/NC output functions with an SCR output type and a switching frequency of 10Hz.
With a maximum load current of 2.5A and a no-load supply current of ? 12mA, these sensors are efficient and effective. They include essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, making them durable and safe for use. The sensors are equipped with a yellow LED indicator for object detection and have a time delay before availability of ? 200ms.
Constructed with a polyester housing and active head material, the sensors are lightweight at 100g and have a degree of protection rated at IP67, ensuring resistance to dust and water. They are designed to withstand operating temperatures from -25°C to +80°C and storage temperatures from -40°C to +85°C. The sensors come with supplied accessories, including a screwdriver and two M30 nuts, for easy installation. Approved by CE and cULus, and compliant with EMC compatibility standards IEC 60947-5-2, these sensors are reliable and efficient for industrial applications.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- SCR
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Operating Voltage:
- 20...250Vac/50-60Hz
- No-Load supply current:
- ? 12mA
- Load current:
- 2,5A max (20ms)
- Leakage current:
- ? 100µA
- Output voltage drop:
- 10VAC @ IL?200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 100g
- Housing Material:
- Polyester
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
