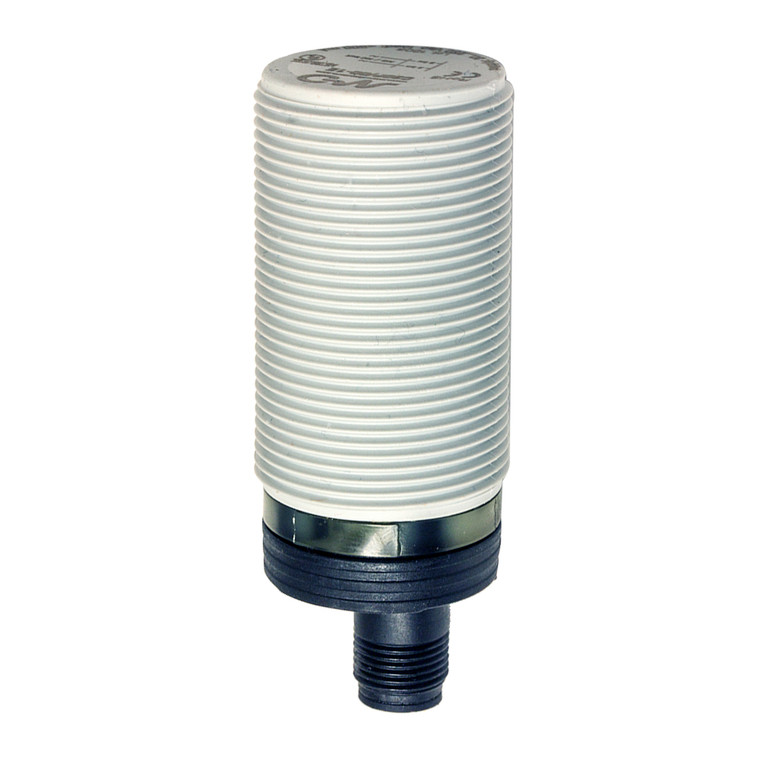

Datasensing C30P/BN-1E Sensors

The Datasensing C30P/BN-1E Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust M30 plastic shielded housing, these sensors offer a nominal sensing distance of 2 to 16mm with minimal thermal drift of less than 20%. The sensors are equipped with both Normally Open (NO) and Normally Closed (NC) output functions, utilizing an NPN output type for versatile connectivity. Engineered for durability, the C30P/BN-1E Sensors boast high noise immunity and adjustable sensitivity, making them suitable for environments with fluctuating conditions. They operate efficiently within a wide voltage range of 10 to 40V DC, with a no-load supply current of ? 12mA and a load current capacity of up to 200mA. The sensors are designed to minimize power loss, featuring a low output voltage drop of 2.5V max at a load current of 200mA. Built to withstand harsh conditions, these sensors are protected against short circuits, reverse polarity, and impulsive overvoltage, ensuring reliable performance. The IP67-rated mechanical protection guarantees resistance to dust and water ingress, while the polyester housing and active head material provide resilience against shocks and vibrations as per IEC standards. The C30P/BN-1E Sensors come with a convenient M12 plug connection and include supplied accessories such as a screwdriver and two M30 nuts for easy installation. With a compact design measuring M30 in diameter and 79mm in length, these sensors are ideal for space-constrained setups. They are approved by CE and cULus, ensuring compliance with international safety and quality standards.
